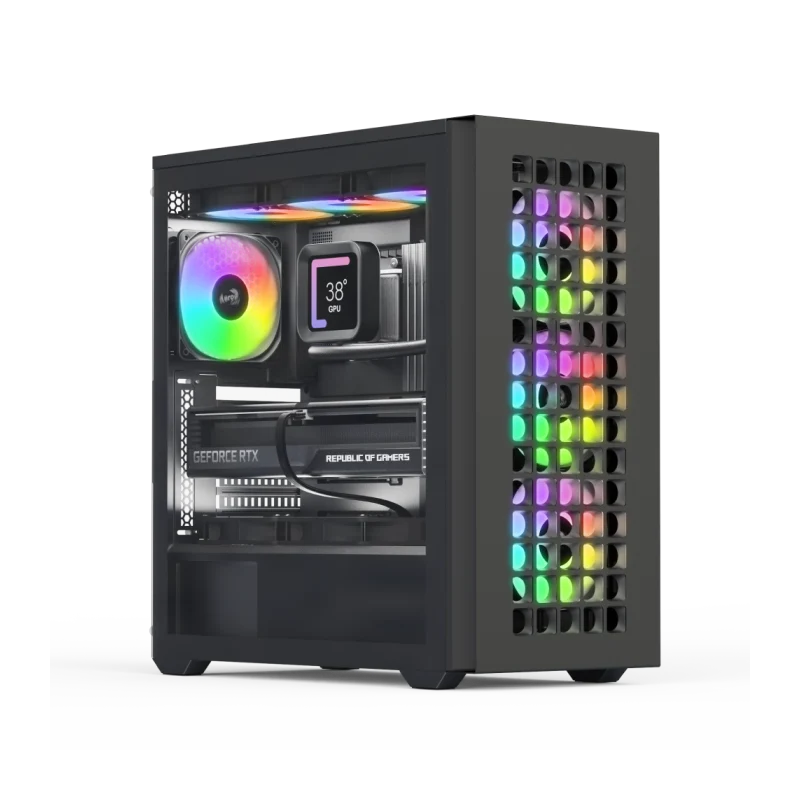

AEROCOOL D502A BLACK

Case Type:

• Mid Tower

Color:

• Black

Body Material:

• SPCC

Front Panel Material:

• ABS

• SPCC

Steel Thickness:

• 0.5mm

Motherboards Supported:

• ATX

• Micro ATX

• Mini-ITX

Case Dimensions (Internal):

• 213 x 462 x 412mm (W x H x D)

Case Dimensions (Overall):

• 213 x 476.5 x 461mm (W x H x D)

Drive Bays:

• 3.5” Drive Bays: 2 Max. (2 x 3.5”)

• 2.5” Drive Bays: 4 Max. (3 x 3.5”)

Expansion Slots:

• 7

GPU Clearance:

• Supports GPUs up to 400mm (without front radiator)

CPU Cooler Clearance:

• Supports CPU coolers up to 171mm

Air Cooling Support:

• Front: 120mm x 3 or 140mm x 3 (Max.)

  • Includes 120mm ARGB fan x 3

• Top: 120mm x 3 or 140mm x 2 (Max.)

• Side: 120mm x 2 (Max.)

• PSU Shroud: 120mm x 2 (Max.)

• Rear: 120mm x 1 (Max.)

  • Includes 120mm ARGB fan x 1

Liquid Cooling Support:

• Front: 120 / 140 / 240 / 280 / 360mm Radiator (Optional)

• Top: 120 / 140 / 240 / 280 / 360mm Radiator (Optional)

  • For 140 / 280mm radiators, max motherboard component height: 30mm

• Rear: 120mm Radiator (Optional)

I/O Ports:

• Type-C x 1

• USB 3.0 x 2

• HD Audio & Mic

Internal Cable Management Depth:

• 19.6mm

Power Supply:

• ATX PSU (including cables, up to 220mm) (Optional)
