ASUS ROG STRIX Z890-F GAMING WIFI

Model

• ROG STRIX Z890-F GAMING WIFI

News & Updates

• Intel® Core Ultra 200S Series: Supports Windows 10 (version 21H2 and later) and Windows 11 (version 22H2 and later)
• Intel® Core Ultra 200S Plus Series: Windows 11 (version 25H2 and later) for full compatibility

CPU

• Intel® Socket LGA1851 for Intel® Core™ Ultra Processors (Series 2)
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset

• Intel® Z890 Chipset

Memory

• 4 x DIMM slots, max. 256GB, DDR5
• Supports up to 9066+ MT/s (OC), Non-ECC, Clocked Unbuffered DIMM (CUDIMM)
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)
• Supports DIMM Flex, DIMM Fit
• ASUS Enhanced Memory Profile III (AEMP III)

Graphics

• 1 x DisplayPort (max. 8K@60Hz, DP 1.4)
• 1 x HDMI® port (4K@60Hz, HDMI 2.1)
• 2 x Intel® Thunderbolt™ 4 (supports DisplayPort and Thunderbolt™ video output)

Expansion Slots

• CPU (Intel® Core™ Ultra Series 2): 1 x PCIe 5.0 x16 slot (x16 or x8/x4/x4 modes)
• Chipset (Intel® Z890): 1 x PCIe 4.0 x16 slot (x4 mode)

Storage

• 5 x M.2 slots (Key M)
  • M.2_1: 2242/2260/2280/22110, PCIe 5.0 x4 (CPU)
  • M.2_2: 2280, PCIe 4.0 x4 (CPU)
  • M.2_3: 2280, PCIe 4.0 x4 (Chipset)
  • M.2_4: 2280/22110, PCIe 4.0 x4 (Chipset)
  • M.2_5: 2242/2260/2280, PCIe 4.0 x4 & SATA (Chipset)
• 4 x SATA 6Gb/s ports
• Supports Intel® RST — PCIe RAID 0/1/5, SATA RAID 0/1/5/10

Ethernet

• 1 x Intel® 2.5Gb Ethernet
• ASUS LANGuard

Wireless & Bluetooth

• Wi-Fi 7 (802.11be), 2x2
• Supports 2.4 / 5 / 6GHz frequency bands
• Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate
• Bluetooth® v5.4

USB

Rear (14 ports total):

• 2 x Thunderbolt™ 4 (USB Type-C®)
• 6 x USB 10Gbps (4 x Type-A + 1 x Type-C® + 1 x Type-C® with 30W PD Fast-Charge)
• 4 x USB 5Gbps (Type-A)
• 2 x USB 2.0 (Type-A)

Front (9 ports total):

• 1 x USB 20Gbps connector (Type-C®)
• 2 x USB 5Gbps headers (4 additional ports)
• 2 x USB 2.0 headers (4 additional ports)

Audio

• ROG SupremeFX 7.1 Surround Sound HD Audio — ALC4080 CODEC
• 120 dB SNR stereo playback output / 110 dB SNR recording input
• Supports up to 32-Bit/384 kHz playback
• Impedance sense for front and rear headphone outputs
• Savitech SV3H712 AMP
• SupremeFX Shielding Technology
• Gold-plated audio jacks
• Rear optical S/PDIF out port
• Premium audio capacitors

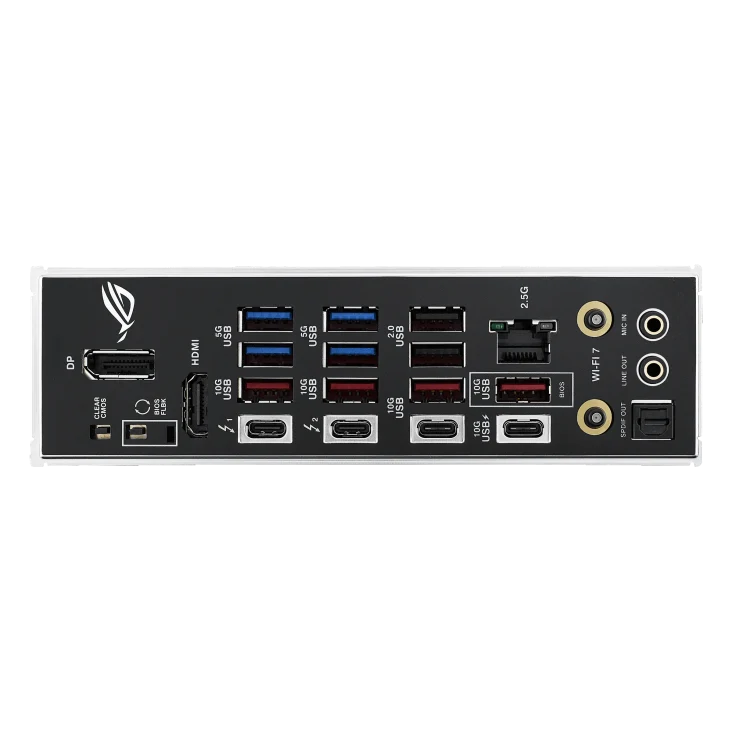

Back Panel I/O

• 2 x Thunderbolt™ 4 (USB Type-C®)
• 6 x USB 10Gbps (4 x Type-A + 2 x Type-C®)
• 4 x USB 5Gbps (Type-A)
• 2 x USB 2.0 (Type-A)
• 1 x DisplayPort
• 1 x HDMI™
• 1 x Wi-Fi module
• 1 x Intel® 2.5Gb Ethernet
• 2 x Gold-plated audio jacks
• 1 x Optical S/PDIF out
• 1 x BIOS FlashBack™ button
• 1 x Clear CMOS button

Internal I/O Connectors

Fan & Cooling:

• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 5 x 4-pin Chassis Fan headers

Power:

• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V CPU Power connectors

Storage:

• 5 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports

USB:

• 1 x USB 20Gbps connector (Type-C®)
• 2 x USB 5Gbps headers (4 additional ports)
• 2 x USB 2.0 headers (4 additional ports)

Miscellaneous:

• 3 x Addressable Gen2 headers
• 1 x Chassis Intrusion header
• 1 x CPU Over Voltage jumper
• 1 x Front Panel Audio header
• 1 x Start button
• 1 x 10-1 pin Front System Panel header
• 1 x Thermal Sensor header
• 1 x Thunderbolt™ (USB4®) header

Special Features

Extreme Engine Digi+:

• 5K Black Metallic Capacitors

ASUS Q-Design:

• M.2 Q-Latch, Q-Release, Q-Slide
• PCIe Slot Q-Release Slim (with PCIe SafeSlot)
• Q-Antenna, Q-Dashboard, Q-DIMM, Q-Slot
• Q-LED (CPU, DRAM, VGA, Boot Device)

ASUS Thermal Solution:

• M.2 heatsinks & heatsink backplate
• VRM heatsink design

ASUS EZ DIY:

• BIOS FlashBack™, Clear CMOS button
• ProCool II, Pre-mounted I/O shield
• SafeSlot, SafeDIMM

Aura Sync:

• Addressable Gen2 headers

Software

ROG Exclusive:

• ROG CPU-Z
• Dolby Atmos

ASUS Exclusive:

• Armoury Crate (Fan Xpert 4 with AI Cooling II, Aura Sync, Aura Creator, GameFirst, HWiNFO, Power Saving)
• AIDA64 Extreme (60-day trial)
• ASUS Driver Hub, ASUS GlideX
• TurboV Core, USB Wattage Watcher

Bundled:

• Adobe Creative Cloud (free trial)
• Norton 360 for Gamers (60-day trial)
• WinRAR (40-day trial)

BIOS

• 256 Mb Flash ROM, UEFI AMI BIOS
• AI Overclocking Guide, NPU Boost, FlexKey
• ASUS CrashFree BIOS 3, EZ Flash, UEFI EZ Mode, MyHotkey

Manageability

• WOL by PME, PXE

Accessories

• 2 x SATA 6Gb/s cables
• 1 x Thermal pad for M.2 22110
• 1 x ASUS Wi-Fi Q-Antenna
• 1 x Cable ties pack
• 1 x M.2 Q-Latch package
• 1 x ROG key chain
• 1 x ROG Strix stickers
• 3 x M.2 rubber packages
• 1 x Quick start guide

Operating System

• Windows® 11 (22H2 and later)

Form Factor

• ATX — 12 inch x 9.6 inch (30.5 cm x 24.4 cm)
