Vendeur: ASI Computer Technologies Inc, PC Laptops

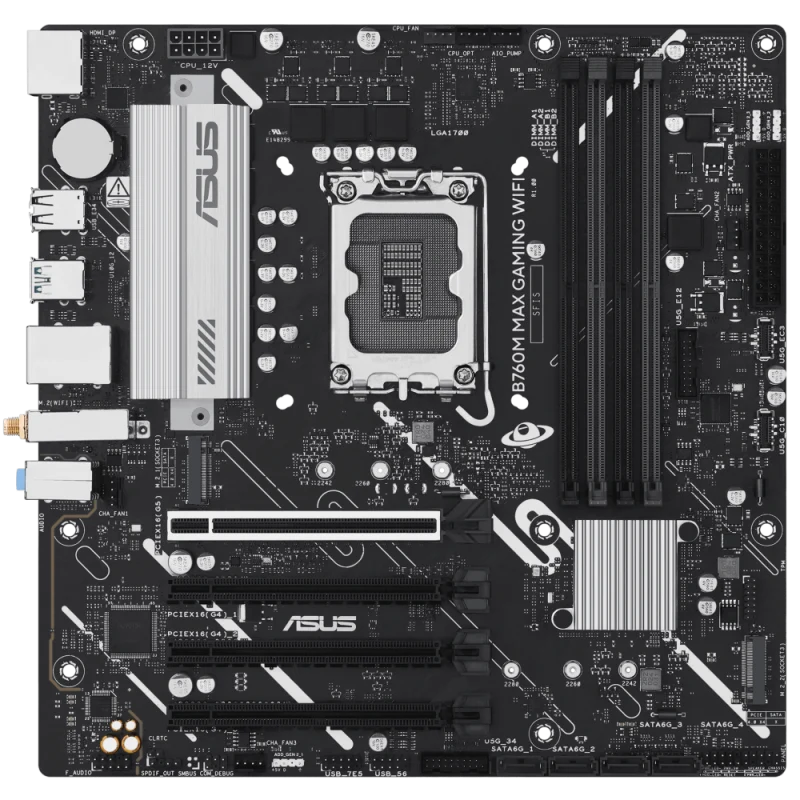

B760M MAX GAMING WIFI-GSI

67,62 €96,93 €30% OFF
Quantité

Détails du produit

B760M MAX GAMING WIFI

CPU

  • Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*

  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

  • *Refer to www.asus.com for CPU support list.

  • **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

  • Intel® B760 Chipset

Memory

  • 4 x DIMM, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory*

  • Dual Channel Memory Architecture

  • Supports Intel® Extreme Memory Profile (XMP)

  • OptiMem II

  • *Supported memory types, data rate (Speed), and number of DRAM modules vary depending on the CPU and memory configuration. For more information refer to www.asus.com for memory support list.

Graphics

  • 1 x DisplayPort**

  • 1 x HDMI™ port***

  • *Graphics specifications may vary between CPU types. Please refer to www.intel.com for updates.

  • **Supports max. 4K@60Hz as specified in DisplayPort 1.4.

  • ***Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

Intel® Core™ Processors (14th, 13th & 12th Gen):

  • 1 x PCIe 5.0 x16 slot

Intel® B760 Chipset:

  • 1 x PCIe 4.0 x16 slot (supports x4 mode)

  • 2 x PCIe 4.0 x16 slot (support x1 mode)

  • *To ensure device compatibility, refer to https://sourisviex.com/support/ for the list of supported peripherals.

Storage

  • Total: 3 x M.2 slots and 4 x SATA 6Gb/s ports*

Intel® Core™ Processors (14th, 13th & 12th Gen):

  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

Intel® B760 Chipset:

  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

  • M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)

  • 4 x SATA 6Gb/s ports

  • *Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

Ethernet

  • 1 x Realtek 1Gb Ethernet

Wireless & Bluetooth

  • Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

  • Supports 2.4/5GHz frequency band

  • Bluetooth® v5.3

  • *Bluetooth version may vary. Refer to the Wi-Fi module manufacturer's site for latest specifications.

USB

Rear USB (Total 6 ports):

  • 2 x USB 10Gbps ports (Type-A)

  • 4 x USB 2.0 ports (Type-A)

Front USB (Total 10 ports):

  • 2 x USB 5Gbps headers (support 4 additional USB 5Gbps ports)

  • 2 x USB 5Gbps ports (support USB Type-C®)

  • 2 x USB 2.0 headers (support 4 additional USB 2.0 ports)

Audio

  • Realtek 7.1 Surround Sound High Definition Audio CODEC*

    • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

    • Supports up to 24-Bit/192 kHz playback

Audio Features:

  • Audio Shielding

  • Premium audio capacitors

  • Dedicated audio PCB layers

  • *Chassis with HD audio module in the front panel required for 7.1 Surround Sound output.

Back Panel I/O Ports

  • 2 x USB 10Gbps ports (Type-A)

  • 4 x USB 2.0 ports (Type-A)

  • 1 x DisplayPort

  • 1 x HDMI™ port

  • 1 x Wi-Fi Module

  • 1 x Realtek 1Gb Ethernet

  • 3 x Audio jacks

Internal I/O Connectors

Fan and Cooling:

  • 1 x 4-pin CPU Fan header

  • 1 x 4-pin CPU OPT Fan header

  • 1 x 4-pin AIO Pump header

  • 3 x 4-pin Chassis Fan headers

Power:

  • 1 x 24-pin Main Power connector

  • 1 x 8-pin +12V Power connector

Storage:

  • 3 x M.2 slots (Key M)

  • 4 x SATA 6Gb/s ports

USB:

  • 2 x USB 5Gbps headers (support 4 additional USB 5Gbps ports)

  • 2 x USB 5Gbps ports (support USB Type-C®)

  • 2 x USB 2.0 headers (support 4 additional USB 2.0 ports)

Miscellaneous:

  • 3 x Aura Addressable Gen 2 headers

  • 1 x Clear CMOS header

  • 1 x Front Panel Audio header (AAFP)

  • 1 x S/PDIF Out header

  • 1 x SPI TPM header (14-1 pin)

  • 1 x 20-3 pin System Panel header with Chassis intrude function

Special Features

ASUS 5X PROTECTION III:

  • DIGI+ VRM

  • LANGuard

  • Overvoltage Protection

  • SafeSlot

  • Stainless-Steel Back I/O

ASUS Q-Design:

  • Q-DIMM

  • Q-LED Core

  • Q-Slot

ASUS EZ DIY:

  • ProCool

AURA Sync:

  • Addressable Gen 2 headers

Software Features

ASUS Exclusive Software:

  • Armoury Crate

    • Aura Creator

    • Aura Sync

    • Fan Xpert 2+

    • Two-Way AI Noise Cancelation

  • AI Suite 3

    • Digi+ VRM

    • PC Cleaner

  • ASUS CPU-Z

  • Norton 360 Deluxe (60 Days Free Trial)

  • WinRAR (40 Days Free Trial)

UEFI BIOS

ASUS EZ DIY:

  • ASUS CrashFree BIOS 3

  • ASUS EZ Flash 3

  • ASUS UEFI BIOS EZ Mode

BIOS

  • 128 Mb Flash ROM, UEFI AMI BIOS

Manageability

  • WOL by PME

  • PXE

Accessories

Cables:

  • 2 x SATA 6Gb/s cables

Miscellaneous:

  • 1 x ASUS Wi-Fi moving antenna

  • 1 x I/O Shield

  • 2 x Screw packages for M.2 SSD

Operating System

  • Windows® 11

  • Windows® 10 64-bit

Form Factor

  • mATX Form Factor

  • 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
