Vendeur: ASI Computer Technologies Inc, PC Laptops

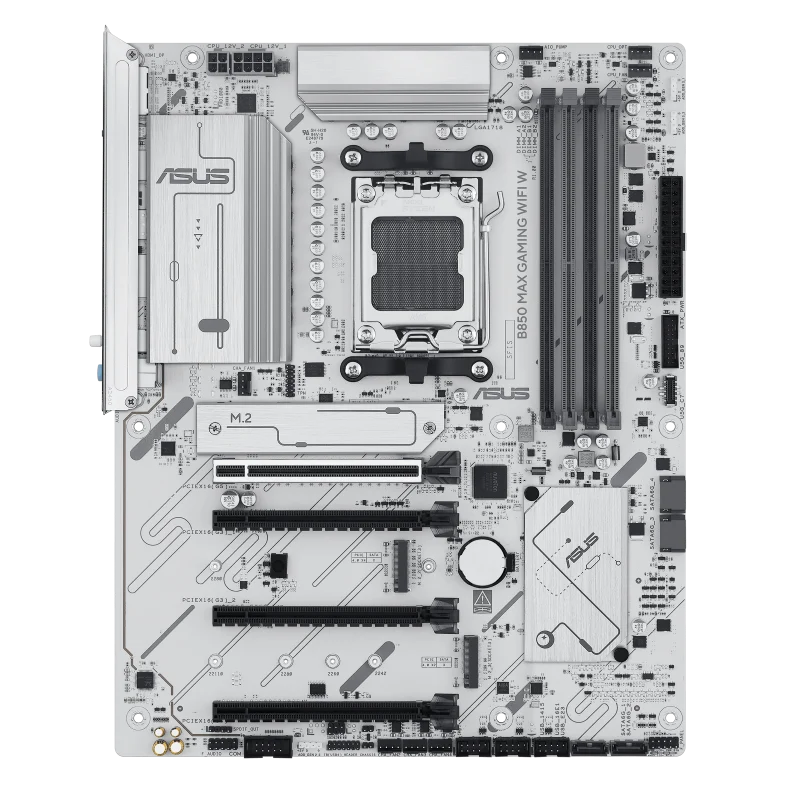

B850 MAX GAMING WIFI W

105,53 €168,88 €37% OFF
Quantité

Détails du produit

Model

B850 MAX GAMING WIFI W

News & Updates

  • Please visit the ASUS Global Website to check and download the latest updates.

CPU

  • AMD Socket AM5 for AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
    (Refer to CPU support list for details)

Chipset

  • AMD B850 Chipset

Memory

  • 4 x DIMM slots, max. 256GB, DDR5

  • Supports up to 8000+ MT/s (OC) with Ryzen™ 9000 / 8000 / 7000 Series

  • ECC and Non-ECC Un-buffered DIMM*

  • Dual channel memory architecture

  • Supports AMD Extended Profiles for Overclocking (EXPO™)

  • ASUS Enhanced Memory Profile (AEMP)

Memory support varies by CPU and memory configuration. Visit the ASUS support site for more information.

Graphics

  • 1 x DisplayPort
    (Supports up to 8K@30Hz, DisplayPort 1.4)

  • 1 x HDMI™ port
    (Supports up to 4K@60Hz, HDMI 2.1)

Graphics specifications vary by CPU. Refer to AMD CPU specs.

Expansion Slots

With Ryzen™ 9000 / 7000 Series:

  • 1 x PCIe 5.0 x16 slot (x16 mode)

With Ryzen™ 8000 Series:

  • 1 x PCIe 4.0 x16 slot (x8/x4 mode)*

AMD B850 Chipset:

  • 1 x PCIe 4.0 x16 slot (x4 mode)

  • 2 x PCIe 3.0 x16 slots (x1 mode)**

See PCIe bifurcation table for compatibility.
PCIEX16(G3)_1/2 shares bandwidth with SATA6G_1/2 — these SATA ports are disabled when either PCIEX16(G3) slot is used.

Storage

  • M.2 Slots (3 total):

With Ryzen™ 9000 / 7000 Series:

  • M.2_1: 2280 (PCIe 5.0 x4)

  • M.2_2: 2280 (PCIe 4.0 x4)

With Ryzen™ 8000 Series:

  • M.2_1: 2280 (PCIe 4.0 x4)

  • M.2_2: 2280 (PCIe 4.0 x4/x2)*

AMD B850 Chipset:

  • M.2_3: 2242/2260/2280/22110 (PCIe 4.0 x2)

  • 4 x SATA 6Gb/s ports

AMD RAIDXpert2 Technology

  • Ryzen™ 9000: RAID 0/1/5/10

  • Ryzen™ 8000: RAID 0/1

  • Ryzen™ 7000: RAID 0/1/10

Ethernet

  • 1 x Realtek 2.5Gb Ethernet

  • ASUS LANGuard

Wireless & Bluetooth

  • Wi-Fi 6E (802.11ax), 2x2, supports 2.4 / 5 / 6GHz*

  • Bluetooth® v5.3**

6GHz WiFi only available in Windows 11 or later and varies by country
Bluetooth version may vary; check module manufacturer site

USB Ports

Rear I/O (8 ports):

  • 4 x USB 10Gbps (3 x Type-A + 1 x USB-C®)

  • 2 x USB 5Gbps (Type-A)

  • 2 x USB 2.0 (Type-A)

Front I/O (up to 9 ports):

  • 1 x USB 5Gbps Type-C® connector

  • 1 x USB 5Gbps header (supports 2 ports)

  • 3 x USB 2.0 headers (support 6 ports)

USB-C® power delivery output: max. 5V/3A

Audio

  • Realtek 7.1 Surround Sound High Definition Audio CODEC*

Features:

  • Jack-detection, Multi-streaming, Front Panel Jack-retasking

  • Supports up to 24-bit/192 kHz playback

  • Audio Shielding

  • Premium audio capacitors

  • Dedicated audio PCB layers

Chassis with HD audio module required for full 7.1 output

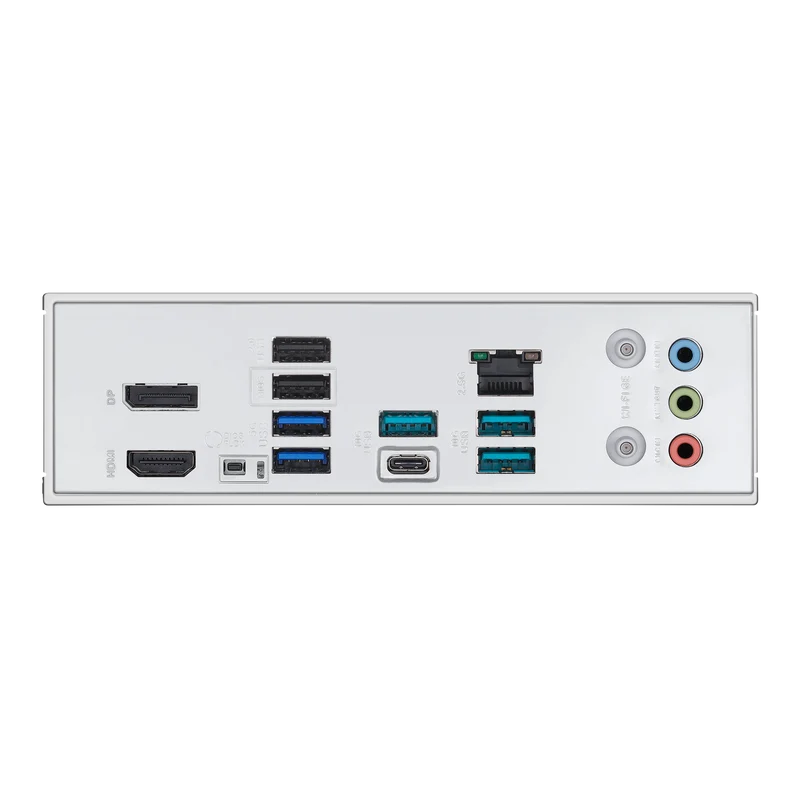

Back Panel I/O Ports

  • 1 x USB 10Gbps (Type-C®)

  • 3 x USB 10Gbps (Type-A)

  • 2 x USB 5Gbps (Type-A)

  • 2 x USB 2.0 (Type-A)

  • 1 x DisplayPort

  • 1 x HDMI™

  • 1 x Wi-Fi module

  • 1 x Realtek 2.5Gb Ethernet port

  • 3 x Audio jacks

  • 1 x BIOS FlashBack™ button

Internal I/O Connectors

Fan and Cooling:

  • 1 x CPU Fan header (4-pin)

  • 1 x CPU OPT Fan header (4-pin)

  • 1 x AIO Pump header (4-pin)

  • 4 x Chassis Fan headers (4-pin)

Power:

  • 1 x 24-pin Main Power

  • 1 x 8-pin +12V CPU Power

  • 1 x 4-pin +12V CPU Power

Storage:

  • 3 x M.2 slots

  • 4 x SATA 6Gb/s ports

USB:

  • 1 x USB 5Gbps Type-C® connector

  • 1 x USB 5Gbps header (2 ports)

  • 3 x USB 2.0 headers (6 ports)

Miscellaneous:

  • 3 x Addressable RGB Gen 2 headers

  • 1 x Clear CMOS header

  • 1 x Chassis Intrusion header

  • 1 x COM Port header

  • 1 x Front Panel Audio (F_AUDIO)

  • 1 x S/PDIF Out header

  • 1 x SPI TPM header (14-1 pin)

  • 1 x 10-1 pin System Panel header

  • 1 x Thunderbolt™ (USB4®) header

Special Features

ASUS 5X PROTECTION III

  • DIGI+ VRM

  • LANGuard

  • Overvoltage protection

  • SafeSlot

  • Stainless-steel back I/O

ASUS Q-Design

  • Q-Antenna

  • Q-Dashboard

  • Q-DIMM

  • Q-LED Core

  • Q-Slot

ASUS Thermal Solution

  • Flexible M.2 heatsink

  • VRM heatsink design

ASUS EZ DIY

  • BIOS FlashBack™ button + LED

  • Pre-mounted I/O shield

  • SafeSlot

Aura Sync

  • Addressable RGB Gen 2 headers

Software Features

ASUS Exclusive Software

  • Armoury Crate

    • Aura Creator

    • Aura Sync

    • Fan Xpert 2+

    • Power Saving

  • ASUS AI Advisor

  • ASUS Driver Hub

  • ASUS GlideX

  • TurboV Core

  • ASUS CPU-Z

  • Norton 360 Deluxe (60-day trial)

  • WinRAR (40-day trial)

UEFI BIOS

ASUS EZ DIY

  • CrashFree BIOS 3

  • EZ Flash 3

  • UEFI BIOS EZ Mode

  • MyHotkey

  • BIOS Type: 256 Mb Flash ROM, UEFI AMI BIOS

Manageability

  • WOL by PME

  • PXE

Accessories

Cables:

  • 2 x SATA 6Gb/s cables

Miscellaneous:

  • 1 x ASUS WiFi Q-Antenna

  • 1 x M.2 rubber package

  • 3 x Screw packages for M.2 SSDs

Documentation:

  • 1 x Quick Start Guide

Operating System

  • Windows® 11

  • Windows® 10 (64-bit)

Form Factor

  • ATX Form Factor

  • Dimensions: 12 inch x 9.6 inch (30.5 cm x 24.4 cm)
