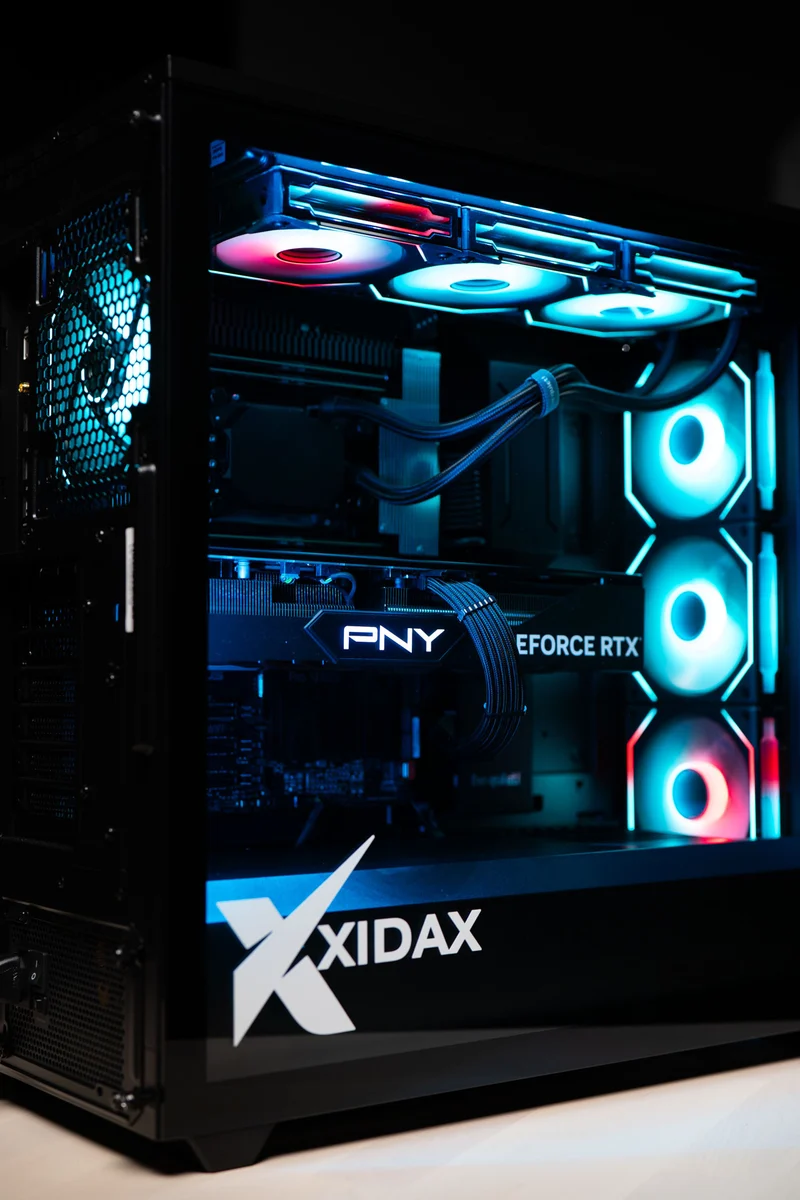

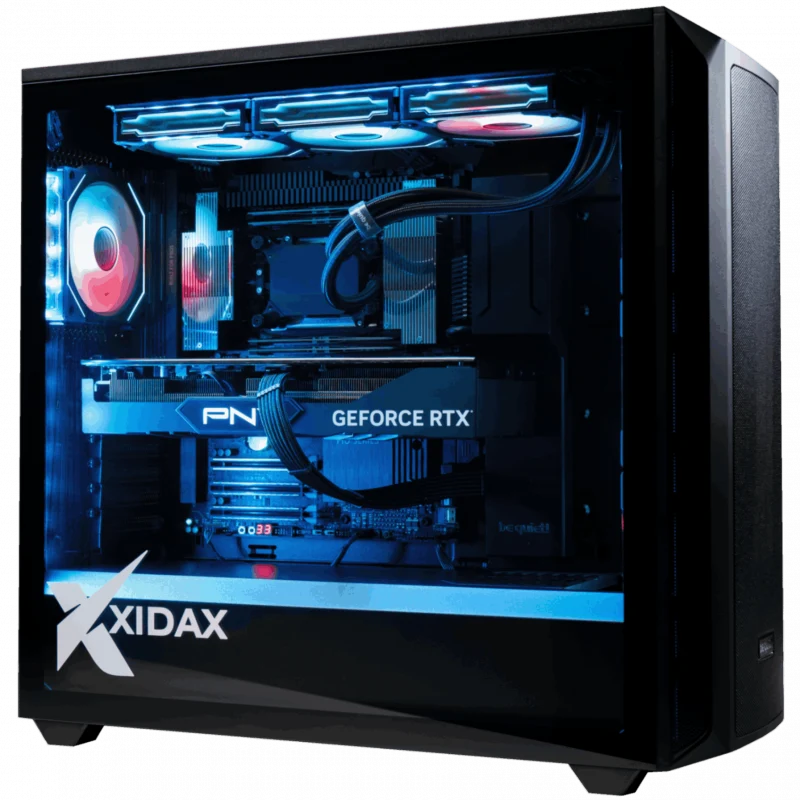

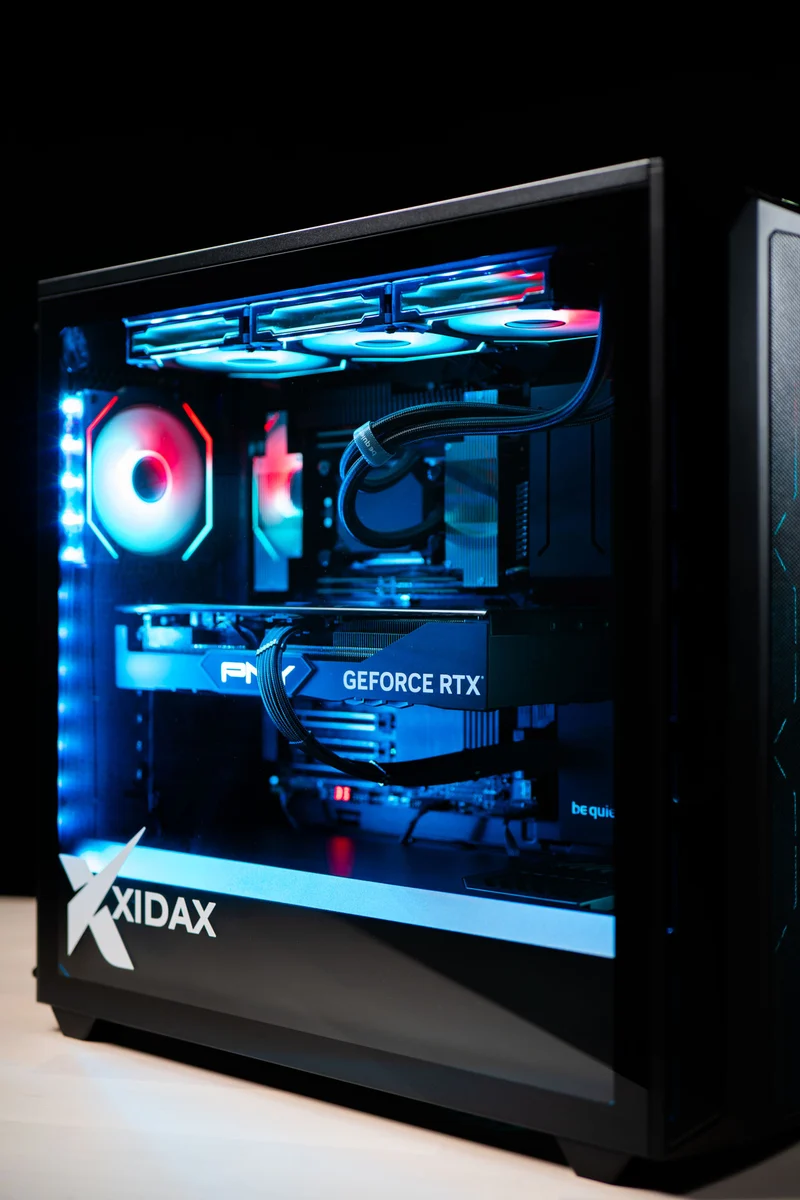

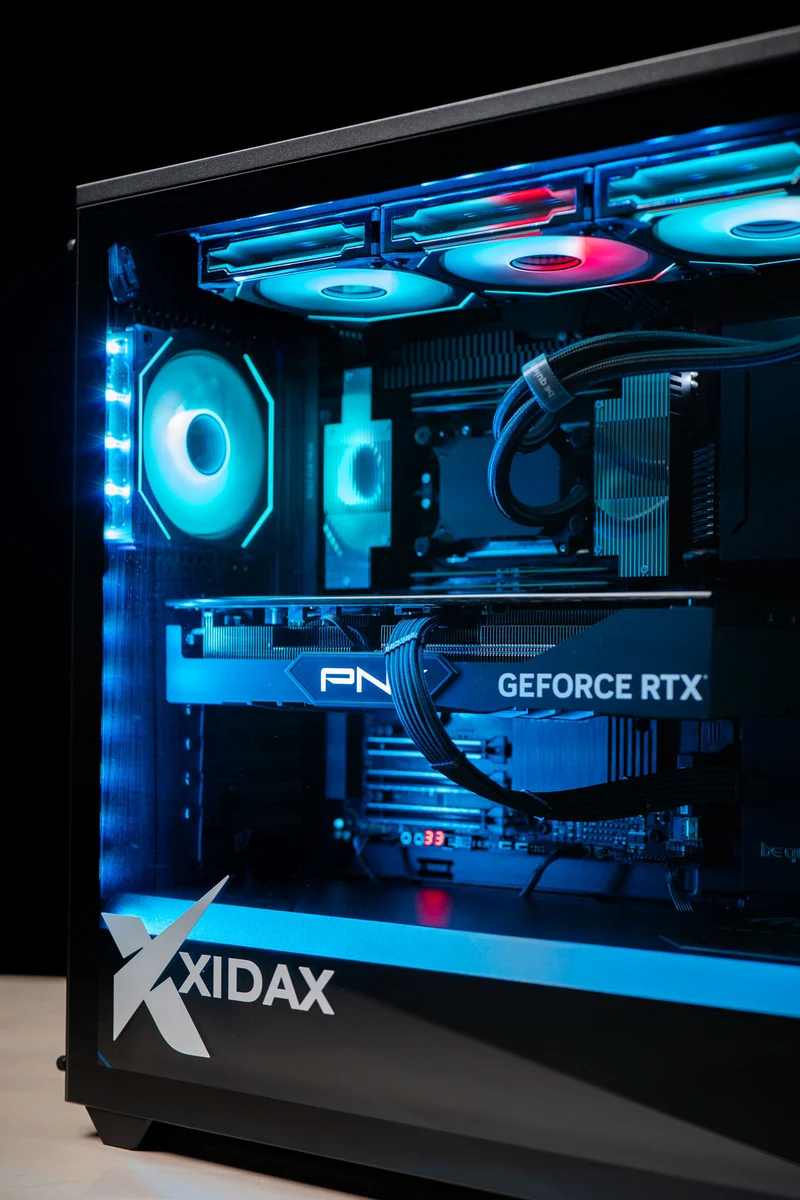

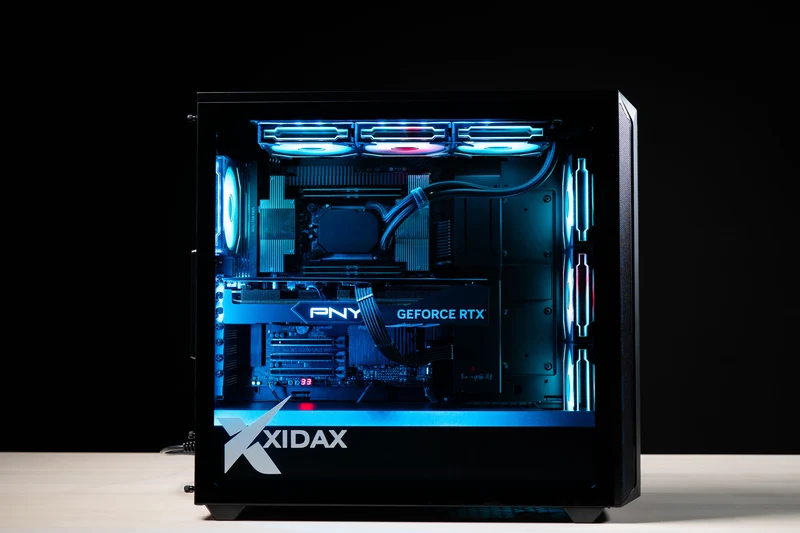

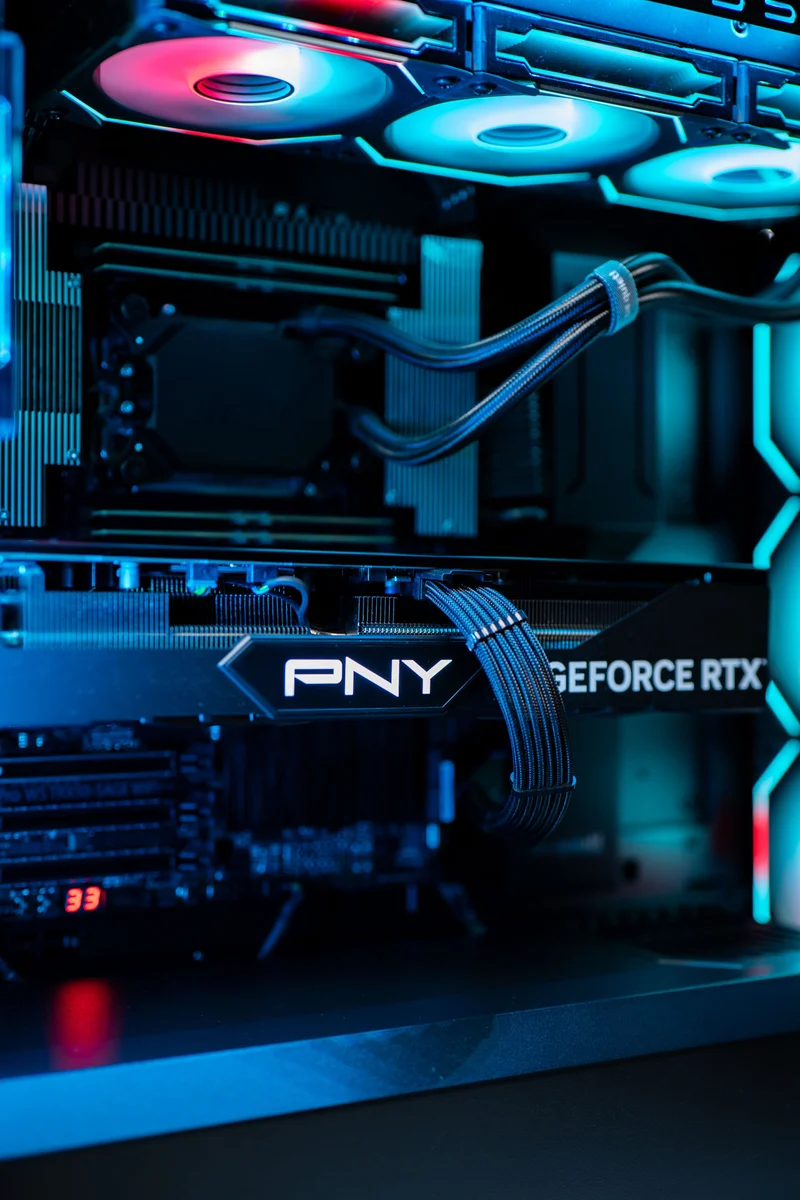

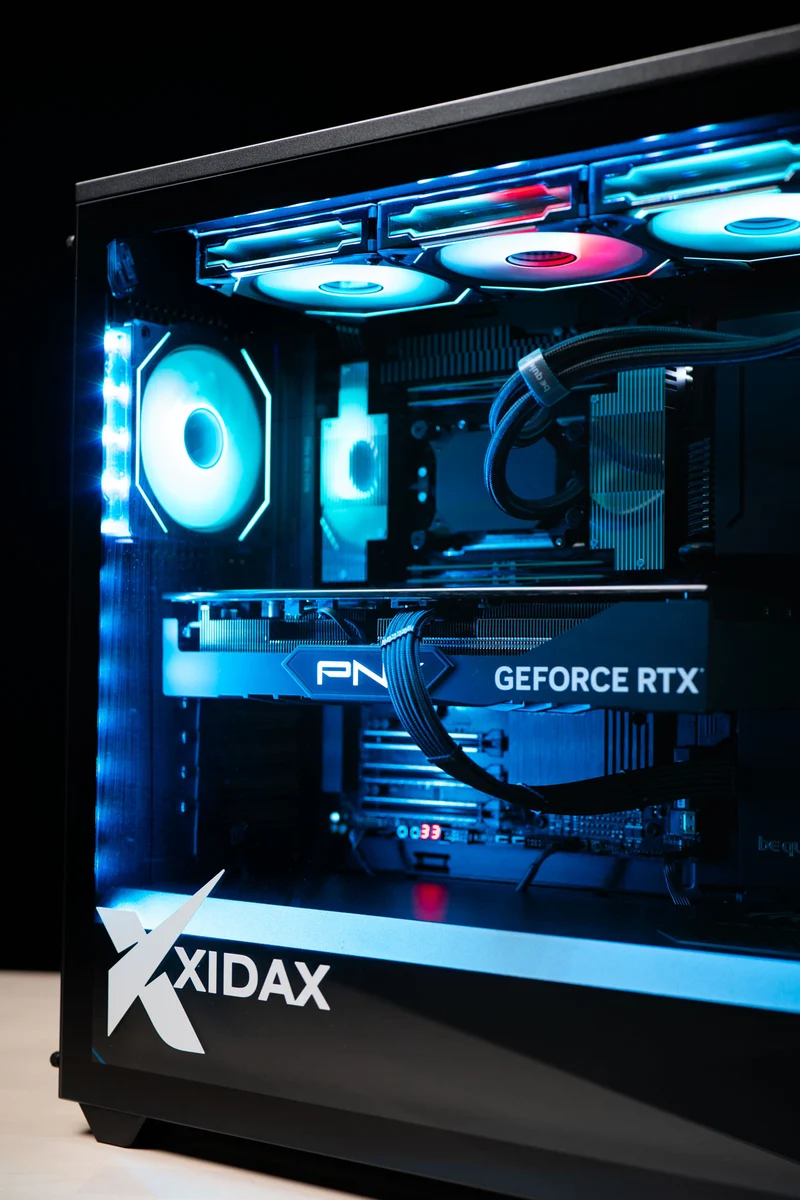

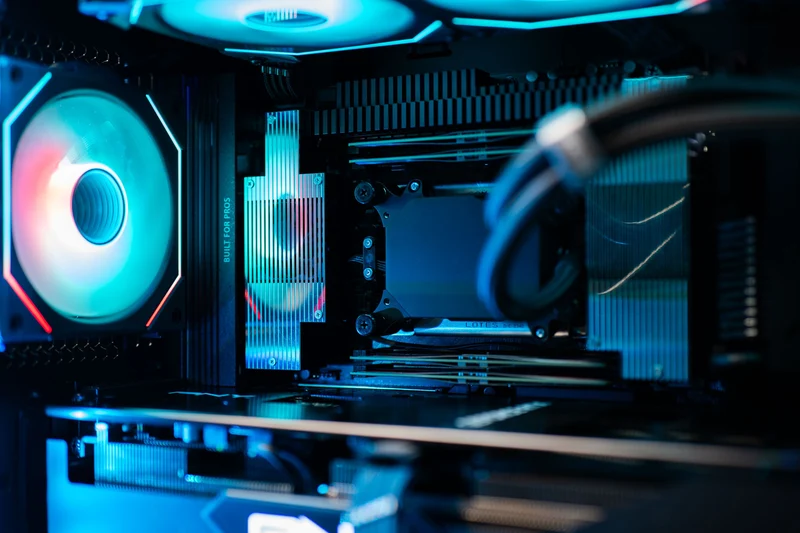

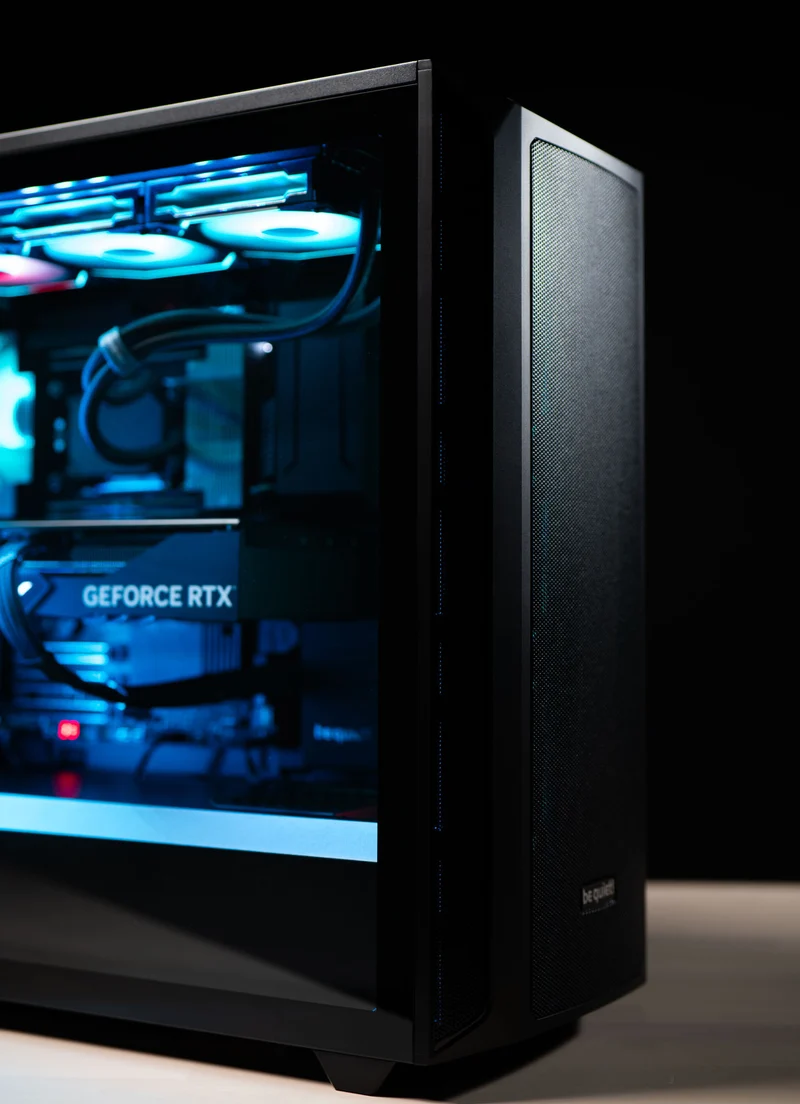

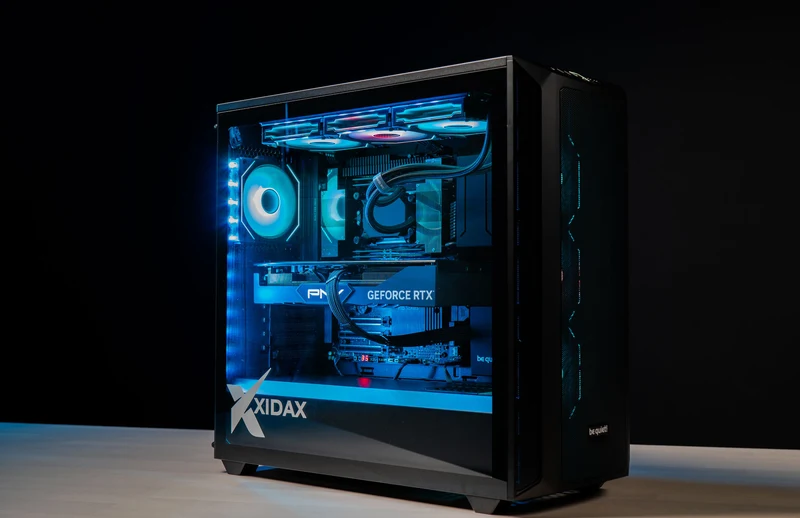

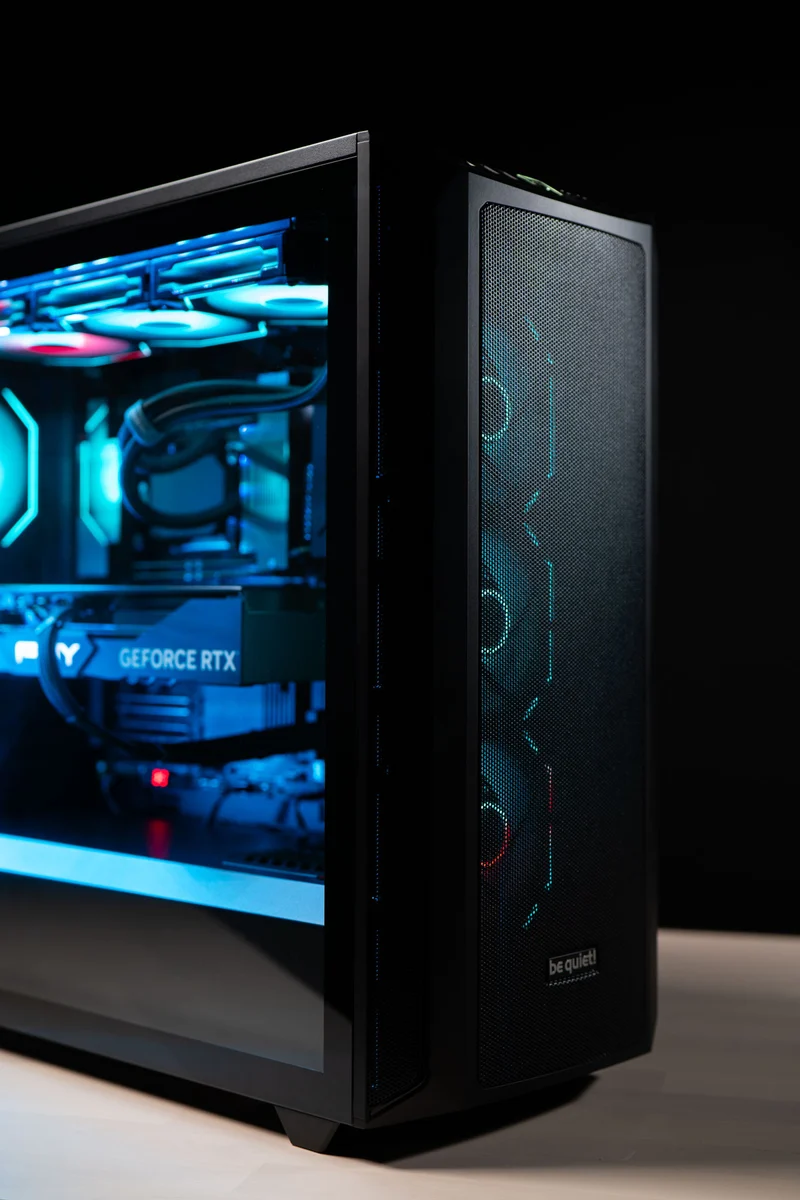

Be Quiet! Shadow Base 800

• Exceptionally high airflow thanks to an open mesh design
• Spacious design offers enough room for even the largest components
• Simple and tool-less HDD and SSD installation
• Rotatable PCIe slots enable vertical installation of GPUs
• Easy to use cable bar for a neat and tidy look
• Tinted and tempered glass side window allows a superb view

Color option Black

Motherboard compatibility E-ATX / ATX / M-ATX / Mini-ITX

Case size excl. stands (L x W x H), (mm) 550 x 247 x 503

Case size incl. stands (L x W x H), (mm) 550 x 247 x 522

Volume (l) 62.74

Expansion slots 7

PSU form factor ATX PS/2

Net weight (kg) 11.7

Pre-installed fans

Fan at top 1x Pure Wings 3 140mm PWM

Fan at front 1x Pure Wings 3 140mm PWM

Fan at side -

Fan at rear 1x Pure Wings 3 140mm PWM

Fan at bottom -

Dimensions (L x W x H), (mm) Front: 140 x 140 x 25 / Rear: 140 x 140 x 25 / Top: 140 x 140 x 25

Fan speed at 100% PWM / 12V (rpm) 1200

Airflow at 100% PWM / 12V (CFM / m3/h) 57.4 / 97.5

Air Pressure at 100% PWM / 12V (mm H2O) 0.96

Noise level at 100% PWM / 12V (dB(A)) 21.9

Voltage range (V DC) 12

Input power (W) 3.6

Input current (A) 0.3

Connector 4-pin PWM

Lifespan (h / 25°C) 80,000

Fan controller -

Maximum fan installation

Maximum fans 8

Top (mm) 3x 140 / 3x 120

Front (mm) 3x 140 / 3x 120

Side (mm) -

Rear (mm) 1x 140 / 1x 120

Bottom (mm) 1x 140 / 1x 120

PSU shroud -

Optional radiator installation

Top (mm) 120 / 140 / 240 / 280 / 360 / 420

Front (mm) 120 / 140 / 240 / 280 / 360 / 420

Side (mm) -

Rear (mm) 120

Bottom (mm) -

PSU compatibility

Maximum dimensions excl. bottom fan (mm) 305

Maximum dimensions incl. bottom fan (mm) 260

Graphics card

HDD cage (in height of graphics card) installed (mm) 430

HDD cage (in height of graphics card) removed (mm) 430

Maximum PCIe slots with vertical graphics card (pcs.) 7

Drive bay capacity

5.25 bays (pcs.) -

3.5 slots (scope of delivery) 2

3.5 slots (max.) 4

2.5 slots (scope of delivery) 4

2.5 slots (max.) 8

Cooling

Max.construction height of CPU cooler unit (mm) 180

Airflow channel Front / Top / Rear / Bottom

Lighting

LED illumination -

LEDs (pcs.) -

LED type -

LEDs synchronizable with controller/motherboard -

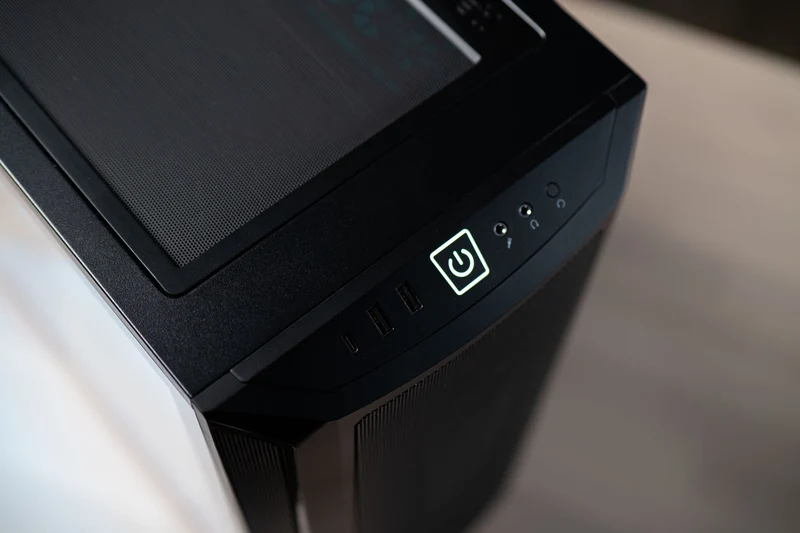

I/O Panel

USB 3.2 Gen. 2 Type C 1

USB 3.2 Type A 2

USB 2.0 -

HD Audio I/O Mic + Audio

Qi charger / Quick Charging Option (W) -

Insulation and damping

Top panel insulation mats -

Front panel insulation mats -

Side panel insulation mats ✓

Anti-vibration decoupled HDD ✓

Anti-vibration decoupled fan -

Anti-vibration decoupled PSU ✓

Anti-vibration decoupled motherboard-tray -

Scope of delivery

Screw set (Drives/Motherboard) ✓

Additional standoffs (pcs.) -

SSD bracket for PSU shroud -

LED strips (pcs.) 0

Cable ties (pcs.) 6 (Velcro) / 4 (Velcro)

Screw box -

VGA holder -

VGA holder for inverted layout -

Mesh Front Panel -

ODD Bracket -

Fan / Radiator bracket for multi mounting panel -

Removeable dust filters

Top -

Front 1

Side -

Bottom 1

Material

Top cover ABS

Front panel ABS

Side panel Steel

Side panel window Tempered glass

Stands ABS
