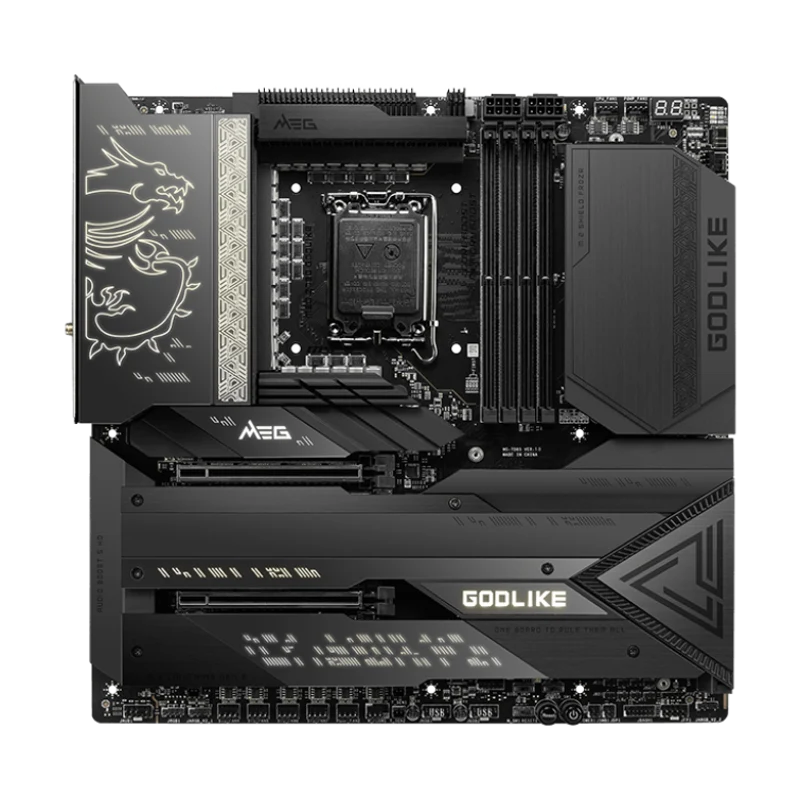

MSI MEG Z790 GODLIKE

614,65 €974,57 €36% OFF
Quantité

Détails du produit

  • CHIPSET INTEL Z790
  • CPU SUPPORT Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
  • LGA 1700
  • MEMORY 4x DDR5 UDIMM, Maximum Memory Capacity 128GB
  • Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
  • Max. overclocking frequency:
  • • 1DPC 1R Max speed up to 7800+ MHz
  • • 1DPC 2R Max speed up to 6600+ MHz
  • • 2DPC 1R Max speed up to 6400+ MHz
  • • 2DPC 2R Max speed up to 5600+ MHz
  • Supports Intel® XMP3.0 OC
  • Supports Dual-Controller Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • ONBOARD THUNDERBOLT Thunderbolt chip JHL8540
  • 2x Thunderbolt4 (USB-C) ports
  • Supports up to 40Gbps transfer rate with Thunderbolt devices
  • Supports up to 20Gbps transfer rate with USB4 devices
  • Supports up to 10Gbps transfer rate with USB 3.2 devices
  • Supports up to 5V/3A,15W power charging
  • Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
  • Supports up to 8K display (need to connect the DisplayPort of the discrete graphics card to the Mini DisplayPort Input port on the back panel)
  • EXPANSION SLOT 2x PCI-E x16 slot
  • PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
  • PCI_E2 PCIe 5.0 supports up to x8 (From CPU)
  • MULTI-GPU Supports AMD MULTI-GPU
  • STORAGE 7x M.2 slot
  • M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
  • M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
  • M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices
  • M.2_4 (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
  • M.2_5 (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260 devices
  • M.2_6 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
  • M.2_7 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
  • 6x SATA 6G port
  • *PCI_E2 slot will be unavailable when installing M.2 SSD in the M2_4 slot.
  • **SATA5~8 will be unavailable when installing M.2 PCIe SSD in the M2_5 slot.
  • ***SATA5~8 will be unavailable when installing M.2 SATA SSD in the M2_5 slot.
  • RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
  • *SATA_A1_A2 do not support RAID function.
  • USB 4x USB 2.0 (Front)
  • 4x USB 3.2 Gen1 Type A (Front)
  • 7x USB 3.2 Gen2 Type A (Rear)
  • 1x USB 3.2 Gen2 Type C (Rear)
  • 2x USB 3.2 Gen2x2 Type C (Front)
  • *To achieve 60W PD fast charging for JUSB6, the PD_PWR1 connector needs to be connected to the power supply unit.
  • **JUSB6 doesn’t support USB 2.0 and older USB devices.
  • LAN Marvell® AQC113CS-B1-C 10Gbps LAN
  • Intel® 2.5Gbps LAN
  • WIRELESS / BLUETOOTH Intel® Wi-Fi 6E
  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
  • Supports 802.11 a/ b/ g/ n/ ac/ ax
  • Supports Bluetooth® 5.3, FIPS, FISMA
  • *Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11."
  • AUDIO Realtek® ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA
  • 7.1-Channel USB High Performance Audio
  • Supports S/PDIF output
  • Supports up to 32-Bit/384 kHz playback on front panel
  • INTERNAL I/O 1x Power Connector(ATX_PWR)
  • 2x Power Connector(CPU_PWR)
  • 1x Front Type-C Quick Charge Connector(PD_PWR1)
  • 1x CPU Fan
  • 2x Pump Fan
  • 7x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Water Flow connector
  • 1x Slow Mode Booting Jumper(JSLOW)
  • 1x Front Audio (JAUD)
  • 2x Thermal Sensor connectors(T_SEN)
  • 1x Tuning Controller connector(JDASH)
  • 3x Addressable V2 RGB LED connector (JARGB_V2)
  • 1x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0
  • 4x USB 3.2 Gen1 Type A
  • 2x USB 3.2 Gen 2x2 Type C
  • V-check point
  • LED FEATURE 1x EZ LED Control switch
  • 4x EZ Debug LED
  • 1x 2-Digit Debug Code LED

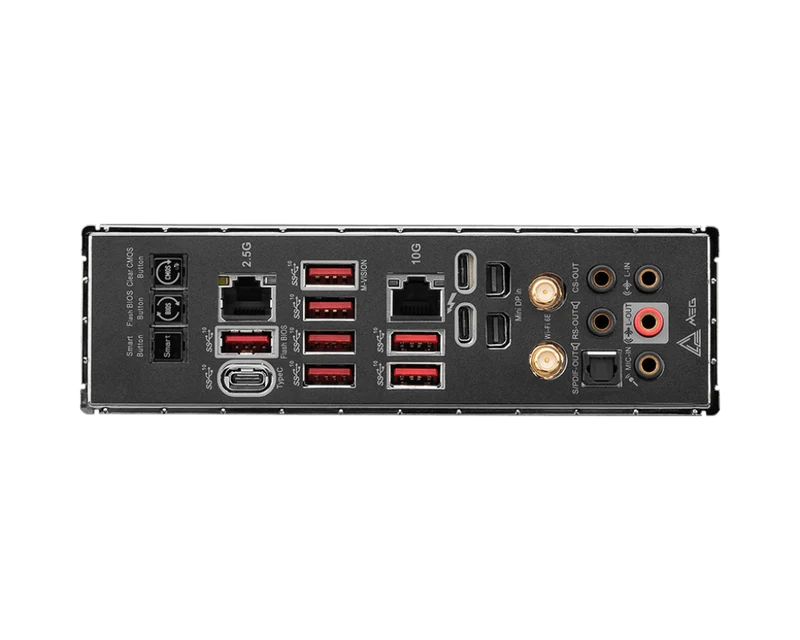

  • BACK PANEL PORTS
  • Clear CMOS Button
  • Flash BIOS Button
  • 2.5G LAN
  • 10G Super LAN
  • Thunderbolt 4 40Gbps (Type-C)
  • Wi-Fi / Bluetooth
  • Audio Connectors
  • Smart Button
  • USB 3.2 Gen 2 10Gbps (Type-C)
  • USB 3.2 Gen 2 10Gbps (Type-A)
  • Mini DisplayPort Input (for Thunderbolt passthrough)
  • Optical S/PDIF-Out
  • OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
  • PCB DIMENSION E-ATX
  • 304.8mmx310mm
