MSI MPG X870E Carbon WiFi Gaming

Chipset

• AMD X870E

CPU

• Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
• Socket: AM5

Memory

• 4x DDR5 UDIMM Slots
• Maximum Capacity: 256GB

Memory Support

• DDR5 9000–5600 MT/s (OC)
• DDR5 5600–4800 MT/s (JEDEC)

Ryzen™ 9000 Series Max Overclocking Speeds

• 1DPC 1R: Up to 8400+ MT/s
• 1DPC 2R: Up to 6400+ MT/s
• 2DPC 1R: Up to 6400+ MT/s
• 2DPC 2R: Up to 6400+ MT/s

Additional Memory Features

• Supports AMD POR Speed & JEDEC Speed
• Supports Memory Overclocking & AMD EXPO™
• Dual-Channel Memory Support
• Non-ECC, Un-buffered Memory Support
• Supports CUDIMM (Clock Driver bypass mode only)

Notes

• CUDIMM support and POR boot frequency may vary by CPU series
• Manual overclocking available after boot
• Future BIOS updates may improve compatibility
• DIMM slots use single-sided latches
• Memory compatibility depends on CPU and memory configuration

Onboard Graphics

Video Outputs

• 1x HDMI™
  • HDMI 2.1 with FRL
  • Up to 8K 60Hz
• 2x USB Type-C DisplayPort
  • USB4® with DisplayPort 1.4 (HBR3)
  • Up to 4K 60Hz

Available only with processors featuring integrated graphics.

Expansion Slots

PCIe Slots

• PCI_E1: PCIe 5.0 x16 (CPU)
• PCI_E2: PCIe 5.0 x4 (CPU)
• PCI_E3: PCIe 4.0 x4 (Chipset)

PCI_E1 & PCI_E2 Configurations

Ryzen™ 9000 / 7000 Series

• PCIe 5.0 x16/x0
• PCIe 5.0 x8/x4

Ryzen™ 8700 / 8600 / 8400 Series

• PCIe 4.0 x8/x0

Ryzen™ 8500 / 8300 Series

• PCIe 4.0 x4/x0

PCI_E3

• Supports up to PCIe 4.0 x4

Bandwidth Note

• PCI_E1, PCI_E2, and M.2_2 share bandwidth

Audio

• Realtek® ALC4080 Codec
• 7.1-Channel USB High-Performance Audio
• Supports up to 32-Bit / 384 kHz playback
• Optical S/PDIF Output

Storage

M.2 Slots

• M.2_1 (CPU): PCIe 5.0 x4 — 2280/2260
• M.2_2 (CPU): PCIe 5.0 x4 — 2280/2260
• M.2_3 (Chipset): PCIe 4.0 x4 — 22110/2280
• M.2_4 (Chipset): PCIe 4.0 x4 — 2280/2260

SATA

• 4x SATA 6Gb/s

M.2 Compatibility

M.2_1

• PCIe 5.0 x4 (Ryzen 9000 / 7000)
• PCIe 4.0 x4 (Ryzen 8000)

M.2_2

• PCIe 5.0 x4 (Ryzen 9000 / 7000)
• Disabled on Ryzen 8000 Series

M.2_3 / M.2_4

• PCIe 4.0 x4

RAID Support

SATA RAID

• RAID 0
• RAID 1
• RAID 10

NVMe RAID

• RAID 0
• RAID 1
• RAID 5
• RAID 10

RAID 5/10 for NVMe supported only on Ryzen™ 9000/7000 Series.

USB Connectivity

Front USB

• 4x USB 2.0
• 4x USB 5Gbps Type-A
• 1x USB 20Gbps Type-C

Rear USB

• 9x USB 10Gbps Type-A
• 2x USB 10Gbps Type-C
• 2x USB 40Gbps Type-C

LAN

• 1x Realtek® 8126 5G LAN
• 1x Realtek® 8125 2.5G LAN

Wireless LAN & Bluetooth

Wi-Fi

• Wi-Fi 7 Solution
• M.2 Key-E Pre-installed Module
• Supports:
  • 2.4GHz / 5GHz / 6GHz
  • MU-MIMO TX/RX
  • 320MHz channels
  • Up to 5.8Gbps
  • 802.11 a/b/g/n/ac/ax/be

Bluetooth

• Bluetooth® 5.4
• Supports MLO & 4KQAM

6GHz and Bluetooth 5.4 support may depend on Windows 11 24H2 and regional regulations.

Internal I/O

Power Connectors

• 1x 24-pin ATX Power
• 2x CPU Power
• 1x PCIe 8-pin Power

Cooling Headers

• 1x CPU Fan
• 1x Combo Fan / Pump Header
• 5x System Fan Headers

Internal Headers

• 1x EZ Conn Header (JAF_2)
• 2x Front Panel Headers (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Front Audio (JAUD)
• 1x Thermal Sensor Header
• 3x Addressable RGB Gen2 Headers
• 1x RGB Header

Internal USB

• 4x USB 2.0 Ports
• 4x USB 5Gbps Type-A Ports
• 1x USB 20Gbps Type-C Port

LED Features

• 4x EZ Debug LEDs
• 1x EZ Digit Debug LED

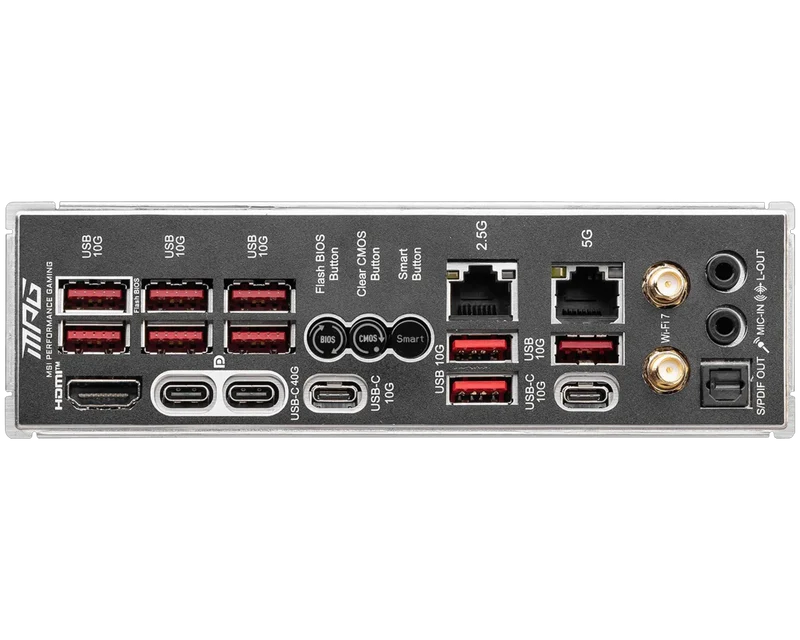

Back Panel Ports

• USB 10Gbps Type-A
• Flash BIOS Button
• Clear CMOS Button
• Smart Button
• 2.5G LAN Port
• 5G LAN Port
• Audio Connectors
• HDMI™
• USB 40Gbps Type-C
• USB 10Gbps Type-C
• Wi-Fi / Bluetooth Antenna Connectors
• Optical S/PDIF Out

Operating System Support

• Windows® 11 64-bit
