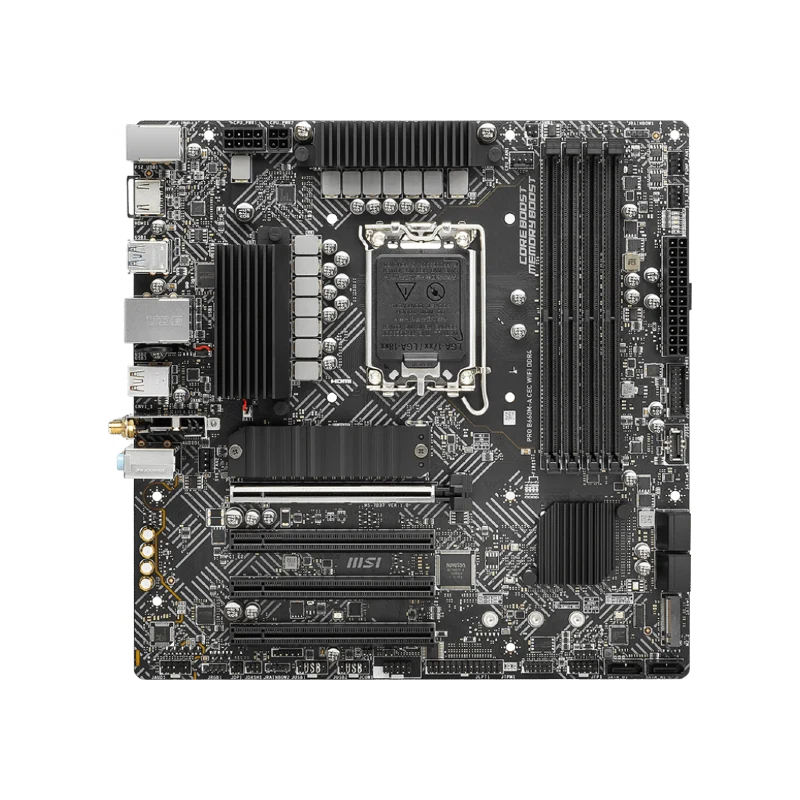

MSI PRO B660M-A CEC WIFI DDR4

55,65 €105,11 €47% OFF
Quantité

Détails du produit

  • CPU
  • Supports 12th/ 13th Gen Intel® Core™ Processors
  • Processor socket LGA1700
  • See supported processors
  • Please go to www.msi.com to get the newest support status as new processors are released.
  • CHIPSET
  • Intel® B660 Chipset
  • MEMORY
  • 4x DDR4 memory slots, support up to 128GB 1
  • Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)
  • Max overclocking frequency:
  • 1DPC 1R Max speed up to 5333+ MHz
  • 1DPC 2R Max speed up to 4000+ MHz
  • 2DPC 1R Max speed up to 4000+ MHz
  • 2DPC 2R Max speed up to 3600+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memoryy
  • Supports Intel® Extreme Memory Profile (XMP)
  • Please refer to www.msi.com for more information on compatible memory.
  • See supported memory
  • EXPANSION SLOT
  • 4x PCIe x16 slots
  • PCI_E1 (From CPU)
  • Support PCIe 4.0 x16
  • PCI_E2 ~4 (From B660 chipset)
  • Support PCIe 3.0 x1
  • ONBOARD GRAPHICS
  • 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1 / 2
  • Available only on processors featuring integrated graphics.Graphics specifications may vary depending on the CPU installed.
  • AUDIO
  • Realtek® ALC897 Codec
  • 7.1-Channel High Definition Audio
  • STORAGE
  • 4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset) 1
  • 2x SATA 6Gb/s ports (SATA_A1 & SATA_B1, from Asmedia ASM1061)
  • 2x M.2 slots (Key M)
  • M2_1 slot (From CPU)
  • Supports PCIe 4.0 x4
  • Supports 2242/ 2260/ 2280 storage devices
  • M2_2 slot (From B660 chipset) 1
  • Supports PCIe 4.0 x4
  • Supports SATA 6Gb/s
  • Supports 2242/ 2260/ 2280 storage devices
  • Intel® Optane™ Memory Ready for M2_2 slot
  • Support Intel® Smart Response Technology for Intel Core™ processors
  • SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
  • RAID
  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices 1
  • SATA_A1 & SATA_B1 do not support RAID function.
  • LAN
  • 1x Realtek® 8125BG 2.5Gbps LAN controller
  • WI-FI & BLUETOOTH®
  • Intel® Wi-Fi 6
  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps
  • Supports 802.11 a/ b/ g/ n/ ac/ ax
  • Supports Bluetooth® 5.2
  • USB
  • Intel® B660 Chipset
  • 2x USB 3.2 Gen 2 10Gbps (Type-A+Type-C) ports on the back panel
  • 3x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports and 1 Type-C port available through the internal USB connectors)
  • 6x USB 2.0 ports (2 Type-A ports on the back panel and 4 ports available through the internal USB connectors)
  • Asmedia ASM1074
  • 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
  • INTERNAL CONNECTORS
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 1x 4-pin ATX 12V power connector
  • 6x SATA 6Gb/s connectors
  • 2x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 1 5Gbps Type-C port
  • 1x USB 3.2 Gen 1 5Gbps connectors (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 2x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Parallel port connector
  • 1x Serial port connector
  • 1x Chassis Intrusion connector
  • 1x Clear CMOS jumper
  • 1x TPM module connector
  • 1x Tuning controller connector
  • LED FEATURES
  • 1x 4-pin RGB LED connector
  • 2x 3-pin RAINBOW LED connectors
  • 4x EZ Debug LED
  • BACK PANEL PORTS
  • Keyboard / Mouse
  • LAN port
  • USB 3.2 Gen 2 10Gbps Type-A
  • Wi-Fi / Bluetooth
  • Audio connectors
  • USB 2.0
  • HDMI
  • USB 3.2 Gen 1 5Gbps Type-A
  • USB 3.2 Gen 2 10Gbps Type-C
  • PRO B660M-A CEC WIFI DDR4
  • DIMENSIONS
  • Micro-ATX Form Factor
  • 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
