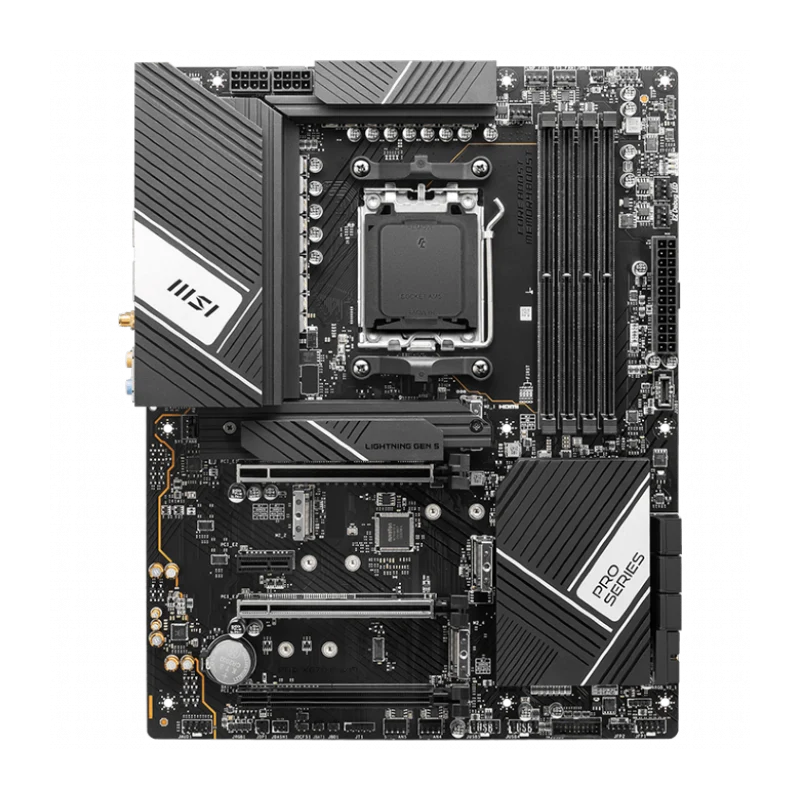

MSI PRO X670-P WIFI

CHIPSET AMD X670

CPU SUPPORT Supports AMD Ryzen™ 7000 Series Desktop Processors

Socket AM5

ONBOARD GRAPHICS 1x HDMI™

Support HDMITM 2.1 FRL, maximum resolution of 4K 120Hz*

1x Display Port

Supports DP1.4, maximum resolution of 4K 60Hz*

1x Type-C Display port

Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

MEMORY 4x DDR5, Maximum Memory Capacity 128GB

EXPANSION SLOT 3x PCI-E x16 slot

Supports x16/x4/x2

1x PCI-E x1 slot

PCI_E1 PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)

PCI_E3 PCIe 4.0 supports up to x4 (From CPU)

PCI_E4 PCIe 4.0 supports up to x2 (From Chipset)

STORAGE 4x M.2 slot

M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices

M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

6x SATA 6G port

RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices*

Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

*SATA_A1 & SATA_A2 do not support RAID function.

LAN Realtek® RTL8125BG 2.5G LAN

WIRELESS / BLUETOOTH AMD Wi-Fi 6E

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX

Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands

Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.2**

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.

** Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.

USB 4x USB 2.0 ports (Front)

4x USB 3.2 Gen1 Type A ports (Rear)

4x USB 3.2 Gen1 Type A ports (Front)

2x USB 3.2 Gen2 Type A ports (Rear)

1x USB 3.2 Gen2 Type C ports (Rear)

1x USB 3.2 Gen2 Type C ports (Front)

1x USB 3.2 Gen2x2 Type C ports (Rear)

AUDIO Realtek® ALC4080 Codec

7.1-Channel High Definition Audio

Supports S/PDIF output

Supports up to 32-Bit/384 kHz playback on front panel

INTERNAL I/O 1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x CPU Fan

1x Pump Fan

6x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Tuning Controller connector(JDASH)

2x Addressable V2 RGB LED connector (JARGB_V2)

2x RGB LED connector(JRGB)

4x USB 2.0 ports

4x USB 3.2 Gen1 Type A ports

1x USB 3.2 Gen2 Type C ports

LED FEATURE 4x EZ Debug LED

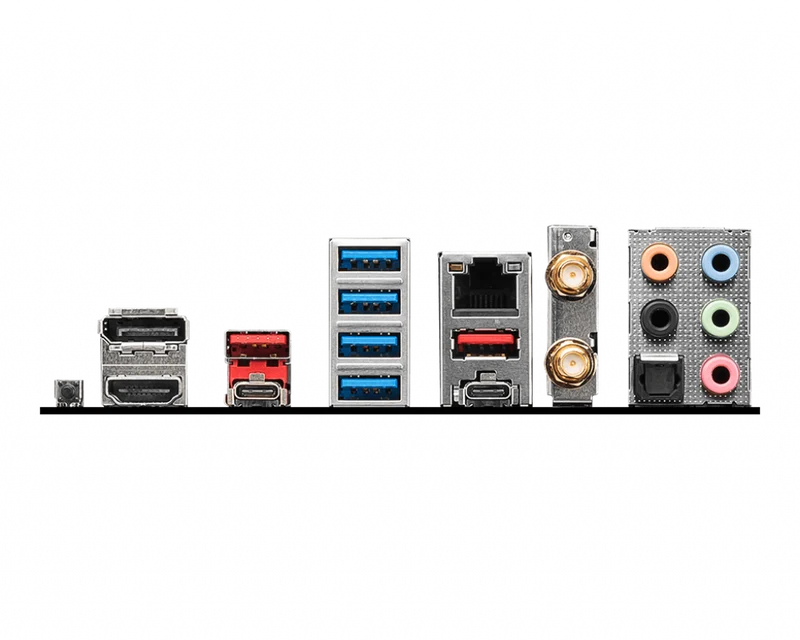

BACK PANEL PORTS

DisplayPort

USB 3.2 Gen 2 10Gbps (Type-A)

USB 3.2 Gen 1 5Gbps (Type-A)

2.5G LAN

Wi-Fi / Bluetooth

Audio connectors

Flash BIOS Button

HDMI™

USB 3.2 Gen 2 10Gbps (Type-C Display port)

USB 3.2 Gen 2x2 20Gbps (Type-C)

USB 3.2 Gen 2 10Gbps (Type-A)

S/PDIF-OUT

OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit

PCB DIMENSION ATX

243.84mmx304.8mm
