SMT-8 17" RTX 5070 U9 275HX

Processor

Intel Core Ultra 9 Processor 275HX (2.7 GHz, up to 5.4 GHz Turbo Frequency), 8 P-cores & 16 E-cores / 24 Threads, 36MB L3 Cache, TDP: 55W

Support CPU over clocking depends on CPU SKU (Both of base frequency and ratio)

Chipset

Intel HM870 Express Chipset

Memory

Supports Dual Channel DDR5

Two 262Pin SODIMM sockets, support for DDR5 up to 6400MHz (Real operation frequency depends on memory module and configuration)

Expandable up to 96GB, depends on 8GB/16GB/32GB/48GB SODIMM module.

Display

17.3” Full HD (1920x1080) 144Hz, Wide View Angle, 72% NTSC, Matte Finished

Graphics

Processor Switchable GPU by Microsoft Hybrid Graphics - NVIDIA GeForce RTX 5070 GPU / Intel Graphics

Support 4 active displays

NVIDIA GeForce RTX 5070 Laptop GPU

- 8GB GDDR7 Video RAM

- Microsoft DirectX 12

- Support PCIe Gen5

- Support Dynamic Boost

- Maximum TGP: 115 W (including 15W Dynamic Boost 2.0)

Intel Graphics (Integrated in Core Ultra 9 Processor)

- Ray Tracing

- Variable Rate Shading

- Microsoft DirectX 12 compatible

- Intel DLBoost: DP4A

Storage

Three M.2 2280 SSD PCIe Gen 4x4 interface (RAID 0/1/5)

Audio System

High Definition audio interface

Built-in Array Microphone

2 Built-in Speakers

Sound Blaster Studio+

Pointing Device

Built in Click pad with Microsoft PTP multi-gesture and scrolling function

Keyboard

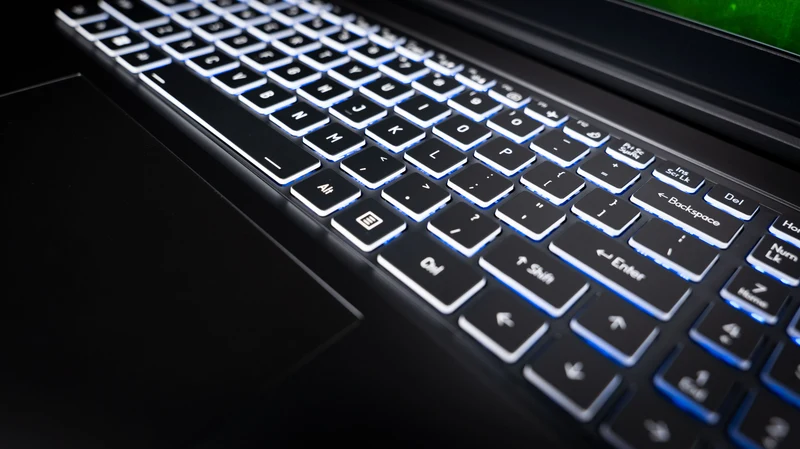

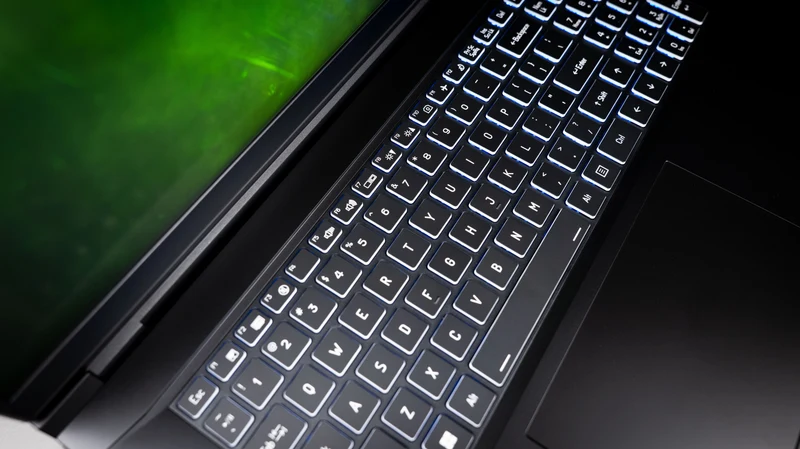

Multi languages, Single Zone Multi-Color illuminated full size isolated keyboard with numeric pad. (15 colors to select)

I/O Ports

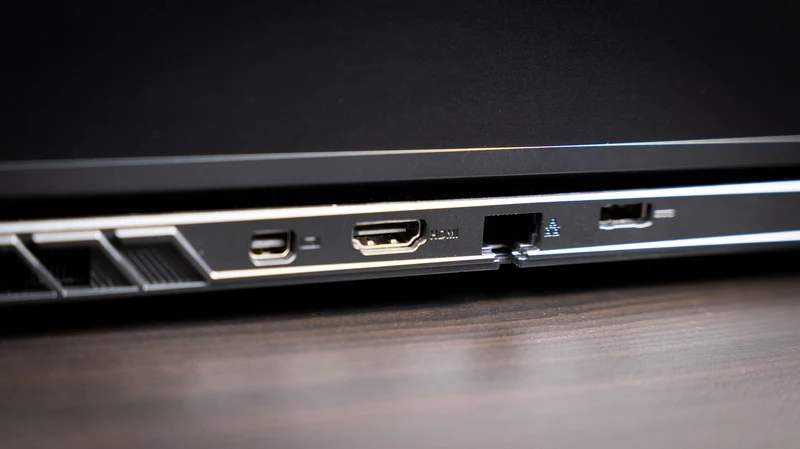

1 HDMI output Port (with HDCP)

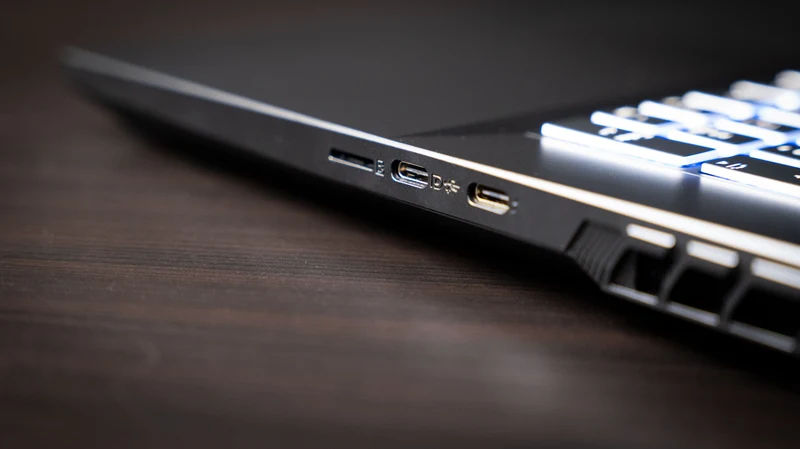

1 DisplayPort 2.1 over USB 3.2 Gen 2 Port (Type C)

1 DisplayPort 2.1 over USB 3.2 Gen 2 port (Type C) with Power Delivery DC-in

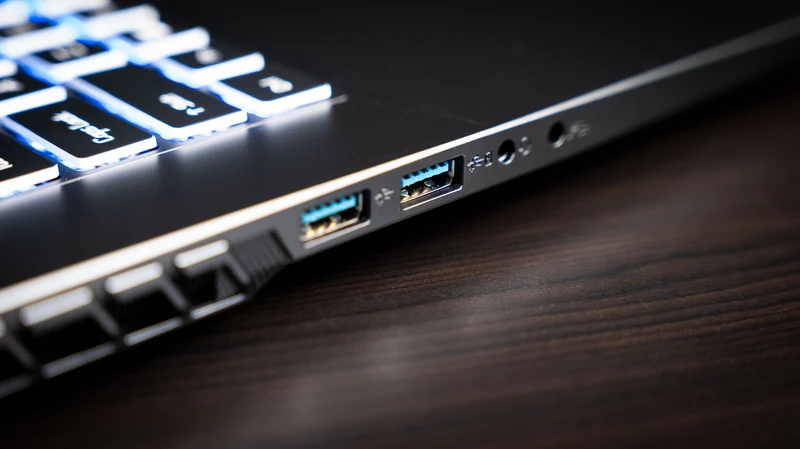

1 USB 3.2 Gen 2 Port (Type A)

1 USB 3.2 Gen 1 Port (Type A)

1 2-in-1 Audio Jack (Headphone / Microphone)

1 RJ-45 LAN (10/100/1000Mbps)

1 DC-in Jack

Slots

Four M.2 Card Slots

- 1st for WLAN Combo M.2 2230 Card with PCIe and USB interface

- 2nd for SSD M.2 2280 Card with PCIe Gen 4x4 interface

- 3rd for SSD M.2 2280 Card with PCIe Gen 4x4 interface

- 4th for SSD M.2 2280 Card with PCIe Gen 4x4 interface

Communication

Built-in Gigabit Ethernet LAN

Intel Wireless Wi-Fi 7 BE200 + Bluetooth, M.2 interface

Security

Security (Kensington Type) Lock Slot

Intel PTT (Platform Trust Technology)

Power System

Built in 4 cells Polymer battery pack 73WH

Full Range AC-in 100~240V, 50~60Hz, 230W AC Adapter, DC output 20V, 11.5A

OS Support

Windows 11 (64-bit)

Certificate

Windows 11 (64-bit) Logo

HDMI Logo

Physical Characteristic

6.17 LBs including bare bone and Battery Pack

15.63" (w) x 10.44" (d) x 1.13" (h)

Other Features

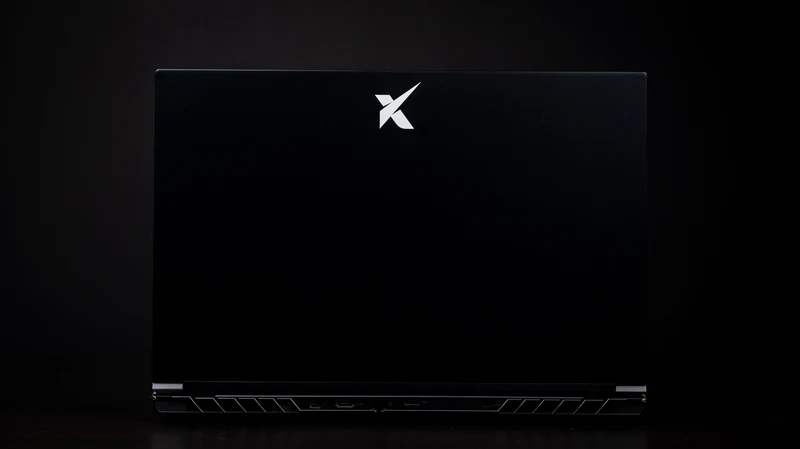

Metal top cover

Built-in 1.0M HD Video Camera

Camera Privacy Shutter

FlexiCharger

Intel DTT (Dynamic Tuning Technology)

Specifications are subject to change without notice
