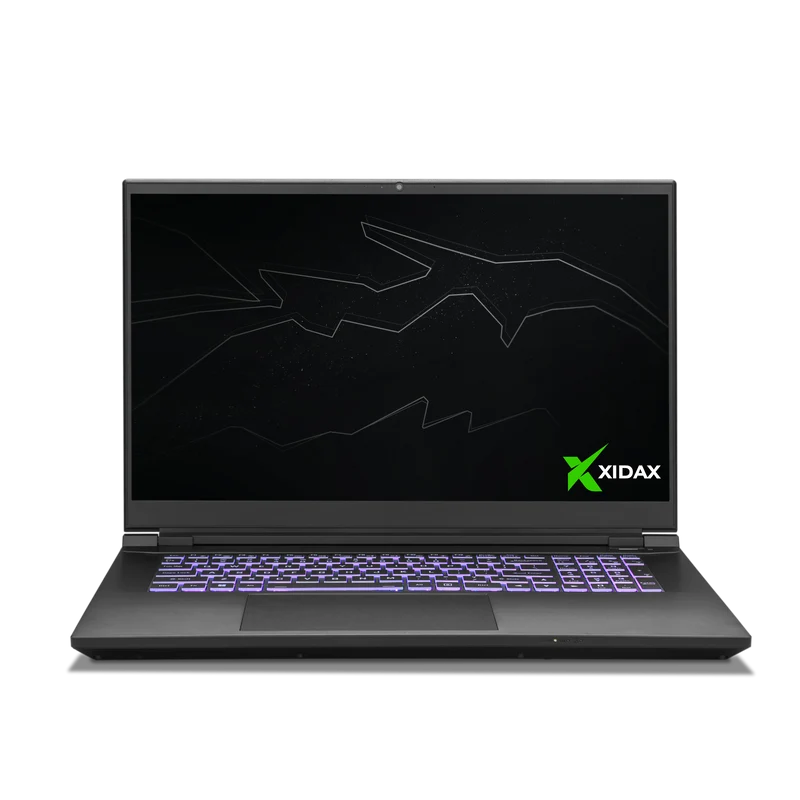

XM-10 17.3" i9 14900HX RTX 4080

CPU

14th Gen Intel Core i9-14900HX ( Max Turbo boost up to 5.80 GHz ), 8 P-cores & 16 E-cores / 32 thread, 36MB Smart Cache

 Chipset Intel HM770 Express Chipset

 Display

17.3” UHD (3840x2160) 144Hz, Wide View Angle, 100% DCI-P3, G-Sync Display, Matte Finished

 Memory

Supports Dual Channel DDR5

Two 262 pins SODIMM sockets, support for DDR5 up to 4800MHz (Real operation frequency depends on processor)

Expandable up to 64GB, depends on 8GB/16GB/32GB SODIMM module

 Video Controller

NVIDIA Advanced Optimus (Dynamic Display Switching) Technology

Support up to 4 active displays

Support NVIDIA Surround View via HDMI x1, mini DP x1 and Thunderbolt 4 x1

NVIDIA GeForce RTX 4080 Laptop GPU

- 12GB GDDR6 Video RAM

- NVIDIA Ada Lovelace Architecture

- Microsoft DirectX 12

- GeForce CUDA technology

- Support PCIe Gen4

- Dynamic Boost 2.0

Intel UHD Graphics (Integrated in 13th Gen Core i9 CPU)

- HDR Support

- Rec. 2020 (Wide Color Gamut)

- Microsoft DirectX 12 compatible

Maximum TGP: 175 W (including 25W Dynamic Boost 2.0)

 Storage

Three M.2 2280 SSD PCIe Gen 4x4 interface

 Sound System

High Definition audio interface

S/PDIF digital output

Built-in Array Microphone

Built-in two speakers

Sound Blaster Studio Pro

Audio Amplifier on headphone output

 Keyboard Multi languages LED Per Key full color illuminated full size keyboard with numeric pad

 Pointing Device Built in Click pad with Microsoft PTP multi-gesture and scrolling function

 I/O Ports

1 HDMI output Port (with HDCP)

1 Mini DisplayPort 1.4

1 Thunderbolt 4 combo Port with Power Delivery DC in (Type C)

1 Thunderbolt 4 Port (Type C)

2 USB 3.2 Gen 2 Ports (Type A, 1 x powered USB port, AC/DC)

1 2-in-1 Audio Jack (Headphone / Microphone)

1 2-in-1 Audio Jack (Microphone / S/PDIF Optical output)

1 RJ-45 LAN (10/100/1000/2500Mbps)

 Slots

Four M.2 Card Slots,

- 1st for WLAN Combo M.2 2230 Card with PCIe / USB / CNVi interface (E key)

- 2nd for SSD M.2 2280 Card with PCIe Gen 4x4 interface (M key)

- 3rd for SSD M.2 2280 Card with PCIe Gen 4x4 interface (M key)

- 4th for SSD M.2 2280 Card with PCIe Gen 4x4 interface (M key)

 Communication

Built-in Killer 2.5 Gigabit Ethernet LAN

Intel Dual Band Wireless Wi-Fi 6E AX211 + Bluetooth, M.2 interface

(Factory Option) Killer Dual Band Wireless-AX 1650X + Bluetooth, M.2 interface

 Other Features

Metal top, palm rest and bottom case

Built-in 2.0M FHD Hello Camera with TNR (Temporal Noise Reduction)

FlexiCharger

Intel Dynamic Tuning Technology

Virtual Reality ready

Windows Mixed Reality compatible

NVIDIA G-Sync Technology at Dynamic Display Switch mode

Killer DoubleShot Pro with Killer Wireless Module

 Power

Full Range 330W AC Adapter, AC-in 100~240V, 50~60Hz, DC output 19.5V, 16.92A

Embedded 8 cells Polymer battery pack 99WH

 Security

Security (Kensington Type) Lock Slot

Intel PTT (Platform Trust Technology)

TPM 2.0

 OS Support

Windows 11 (64-bit)

 Certificate Windows 11 (64-bit) Logo

HDMI Logo

 Dimension

15.59” (w) x 10.95” (d) x 0.98” (h)

7.25 lbs. including Bare bone and 99WH Battery Pack
