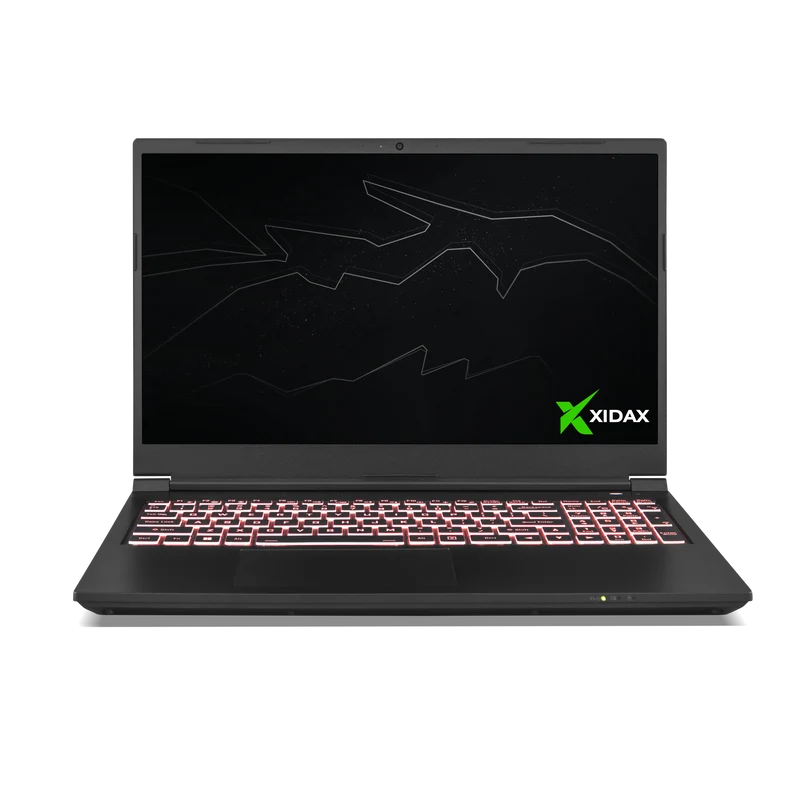

XM-5 15" 1080P R7-7435 RTX 4060

Processor

AMD Ryzen 7 8845HS processor ( 3.8 GHz, Max Boost Up to 5.1 GHz ), 8 cores / 16 threads, 24MB Cache

Memory

Supports Dual Channel DDR5

Two 262Pin SODIMM sockets, support for DDR5 up to 5600MHz (Real operation frequency depends on processor)

Expandable up to 64GB, depends on 8GB/16GB/32GB SODIMM module.

Display

15.6” Full HD (1920x1080) 144Hz, Wide View Angle, 72% NTSC, Matte Finished

Graphics

Processor Switchable GPU by Microsoft Hybrid Graphics - NVIDIA GeForce RTX 4050 GPU / AMD Radeon Graphics

Support 3 active displays

NVIDIA GeForce RTX 4050 Laptop GPU

- 6GB GDDR6 Video RAM

- Microsoft DirectX 12

- NVIDIA CUDA Technology

- Support PCIe Gen4

- Maximum TGP: 105 W (including 25W Dynamic Boost 2.0)

AMD Radeon 780M Graphics (Integrated in Ryzen 7 Processor)

- HDR Support

- FidelityFX Super Resolution (FSR)

- Microsoft DirectX 12 compatible

Storage

Two M.2 2280 SSD PCIe Gen 4x4 interface

Audio System

High Definition audio interface

Built-in Array Microphone

2 Built-in Speakers

Sound Blaster Studio+

Pointing Device

Built in Click pad with Microsoft PTP multi-gesture and scrolling function

Keyboard

Multi languages, Single Zone Multi-Color illuminated full size keyboard with numeric pad. (15 colors to select)

I/O Ports

1 HDMI output Port (with HDCP)

1 DisplayPort 1.4 over USB 3.2 Gen 2 Port (Type C)

1 USB 3.2 Gen 2 Port (Type C) with Power Delivery DC-in

1 USB 3.2 Gen 2 Port (Type A)

1 USB 3.2 Gen 1 Port (Type A)

1 2-in-1 Audio Jack (Headphone / Microphone)

1 RJ-45 LAN (10/100/1000Mbps)

Slots

Three M.2 Card Slots

- 1st for WLAN Combo M.2 2230 Card with PCIe and USB interface

- 2nd for SSD M.2 2280 Card with PCIe Gen 4x4 interface

- 3rd for SSD M.2 2280 Card with PCIe Gen 4x4 interface

Communication

Built-in Gigabit Ethernet LAN

Intel Dual Band Wireless-Wi-Fi 6E AX210 + Bluetooth, M.2 interface

Security

Security (Kensington Type) Lock Slot

FTPM for system without Hardware TPM

Power System

Built in 4 cells Polymer battery pack 53.35WH

Full Range AC-in 100~240V, 50~60Hz, 180W AC Adapter, DC output 20V, 9A

OS Support

Windows 11 (64-bit)

Certificate

Windows 11 (64-bit) Logo

HDMI Logo

Physical Characteristic

5.06 LBs including bare bone and Battery Pack

14.21" (w) x 9.78" (d) x 0.98" (h)

Other Features

Built-in 1.0M HD Video Camera

FlexiCharger

Virtual Reality ready

Specifications are subject to change without notice
