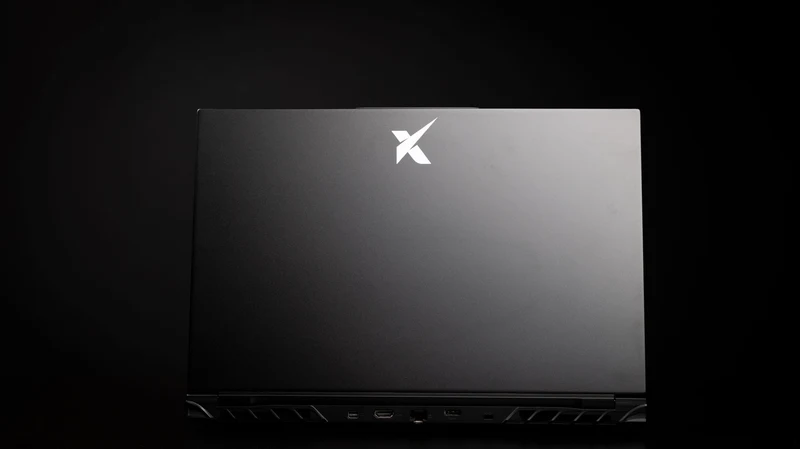

XMT-7 16" RTX 5070Ti U9 275HX

Processor

Intel Core Ultra 9 Processor 275HX (2.7 GHz, up to 5.4 GHz Turbo Frequency), 8 P-cores & 16 E-cores / 24 Threads, 36MB L3 Cache, TDP: 55W

Support CPU over clocking depends on CPU SKU (Both of base frequency and ratio)

Chipset

Intel HM870 Express Chipset

Memory

Supports Dual Channel DDR5

Two 262Pin SODIMM sockets, support for DDR5 up to 5600MHz (Real operation frequency depends on processor and memory module)

Expandable up to 96GB, depends on 8GB/16GB/32GB/48GB SODIMM module

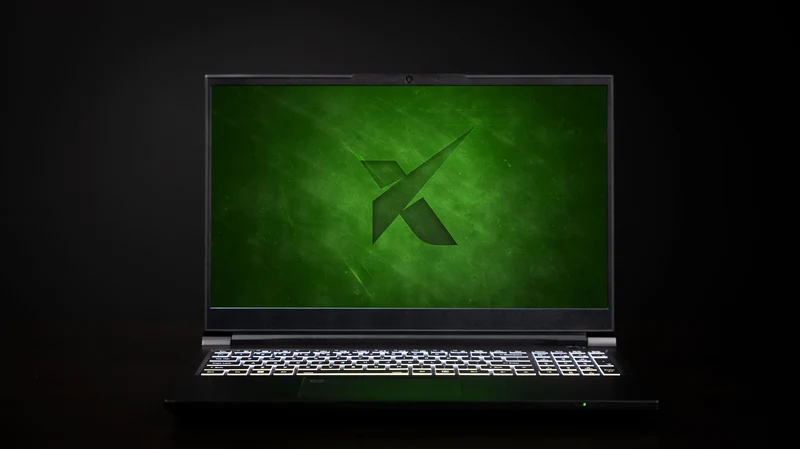

Display

16” QHD+ (2560x1600) 240Hz, Wide View Angle, 72% NTSC, G-Sync Display, Matte Finished

Graphics

Processor NVIDIA Advanced Optimus (Dynamic Display Switching) Technology

Support 4 active displays via HDMI x1 and Thunderbolt 4 x2

NVIDIA GeForce RTX 5070 Ti Laptop GPU

- 12GB GDDR7 Video RAM

- Microsoft DirectX 12

- Support PCIe Gen5

- Maximum TGP: 140 W (including 25W Dynamic Boost)

Intel Graphics (Integrated in Core Ultra 9 Processor)

- Ray Tracing

- Variable Rate Shading

- Microsoft DirectX 12 compatible

- Intel DLBoost: DP4A

Storage

Three M.2 2280 SSD PCIe Gen4x4 interface, with support one compatible with PCIe Gen5x4 interface

Audio System

High Definition audio interface

Built-in Array Microphone

Built-in two 2W speakers

Sound Blaster Studio Pro 2

Pointing Device

Built-in Click pad with Microsoft PTP multi-gesture and scrolling function

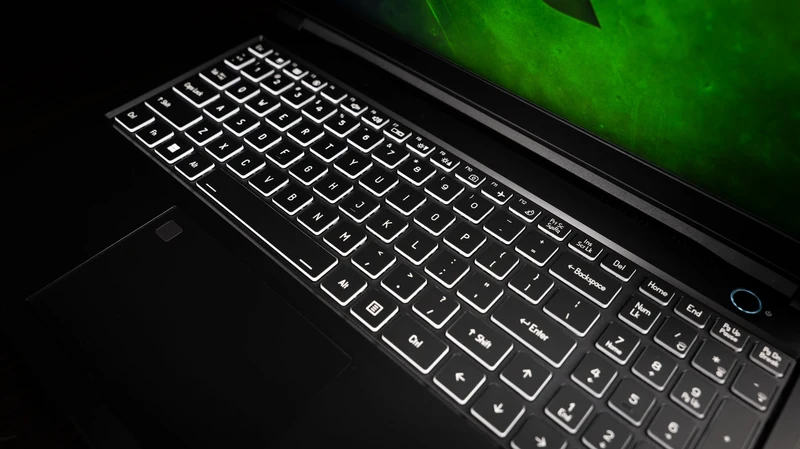

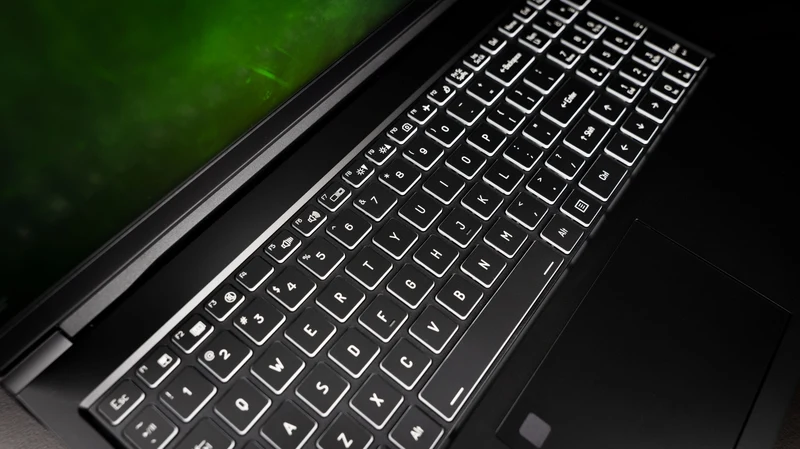

Keyboard

Multi-languages, 4-Zone full Color illuminated full size isolated keyboard with numeric pad

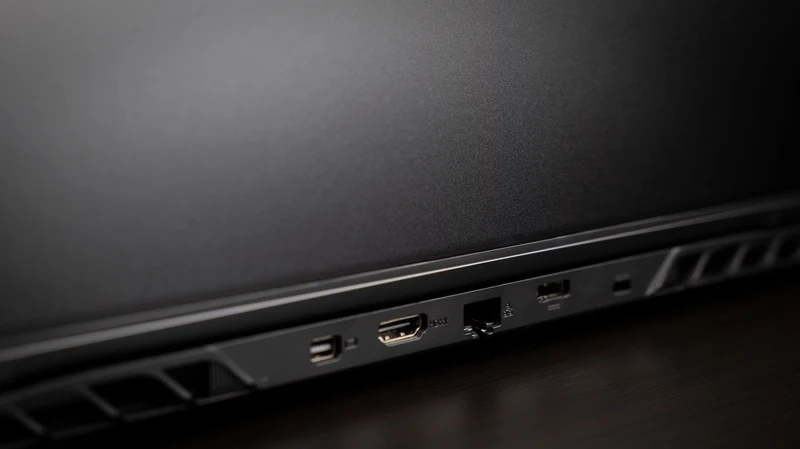

I/O Ports

1 HDMI output Port (with HDCP)

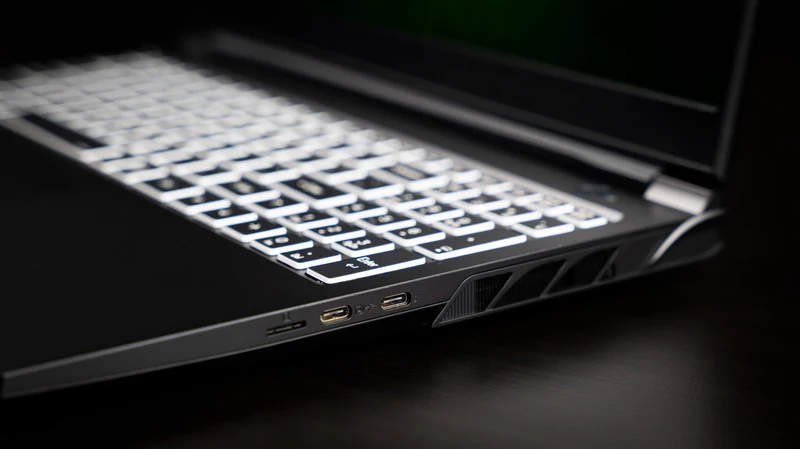

2 Thunderbolt 4 Combo Ports with Power Delivery DC in (Type C)

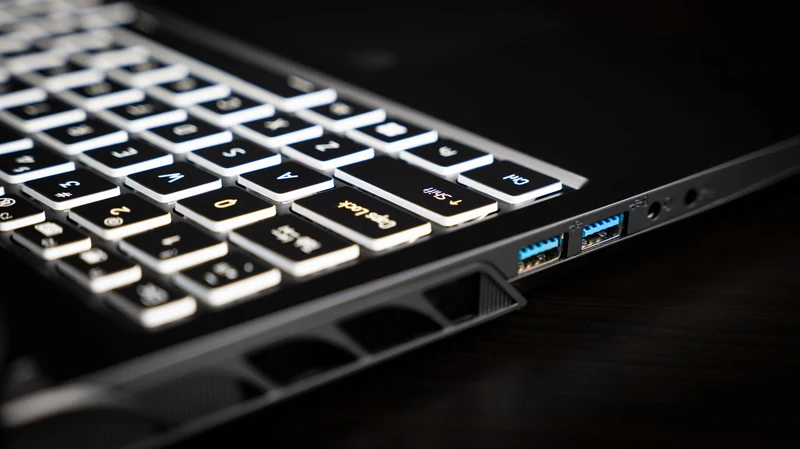

2 USB 3.2 Gen2 Ports (Type A, with 1 x powered USB port, AC/DC)

1 2-in-1 Audio Jack (Headphone / Microphone)

1 RJ-45 LAN (10/100/1000/2500Mbps)

Card Reader

Micro SD Push-Push Card reader

Slots

Four M.2 Card Slots

- 1st for WLAN Combo M.2 2230 Card with PCIe and USB interface

- 2nd for SSD M.2 2280 Card with PCIe Gen 4x4 / Gen 5x4 interface

- 3rd for SSD M.2 2280 Card with PCIe Gen 4x4 interface

- 4th for SSD M.2 2280 Card with PCIe Gen 4x4 interface

Communication

Built-in Killer 2.5 Gigabit Ethernet LAN

Intel Wireless Wi-Fi 7 BE200 + Bluetooth, M.2 interface

Security

Security (Kensington Type) Lock Slot

Intel PTT (Platform Trust Technology)

Power System

Embedded 4 cells Polymer battery pack 80WH

Full-Range AC-in 100~240V, 50~60Hz, 230W AC Adapter, DC output 20V, 11.5A

OS Support

Windows 11 (64-bit)

Certificates

Windows 11 (64-bit) Logo

HDMI Logo

Weight and Dimensions

4.96 lbs. including battery pack

14.01" (w) x 10.67" (d) x 0.78" (h)

Other Features

Rear Light Bar Design

Built-in 5.0M Hello Camera with TNR (Temporal Noise Reduction), SecureBIO and Human Presence Detection

Camera Privacy Shutter

Vapor Chamber Thermal Design

FlexiCharger

Intel Dynamic Tuning Technology

NVIDIA G-Sync Technology at Dynamic Display Switch mode

Specifications are subject to change without notice
