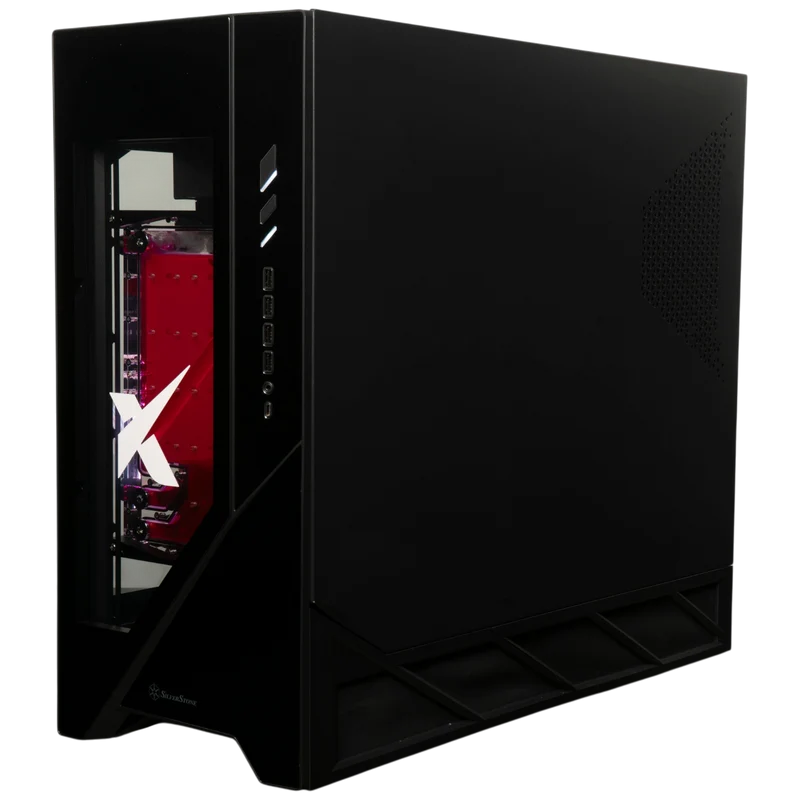

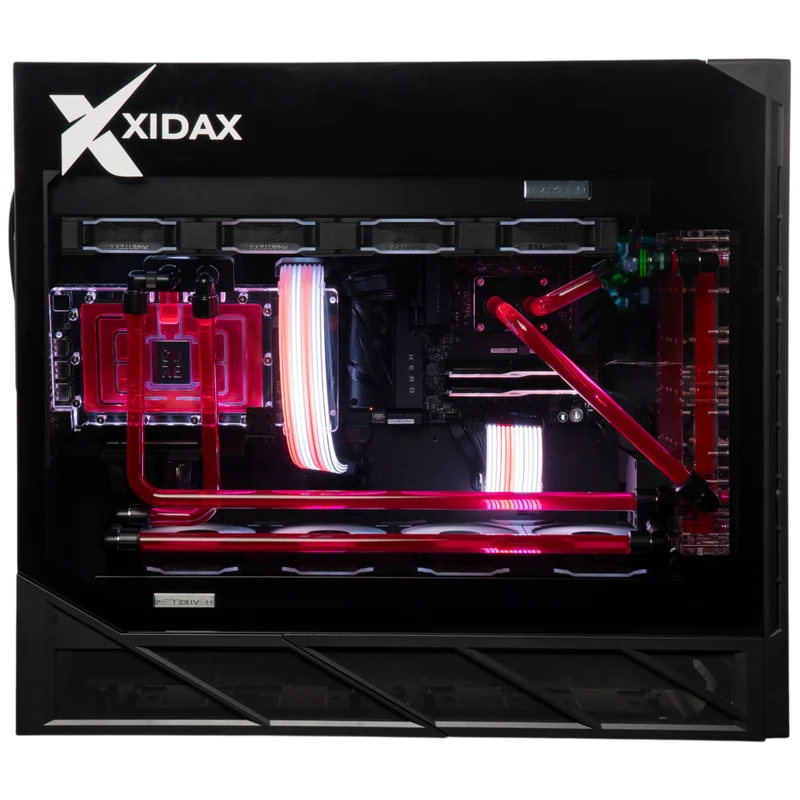

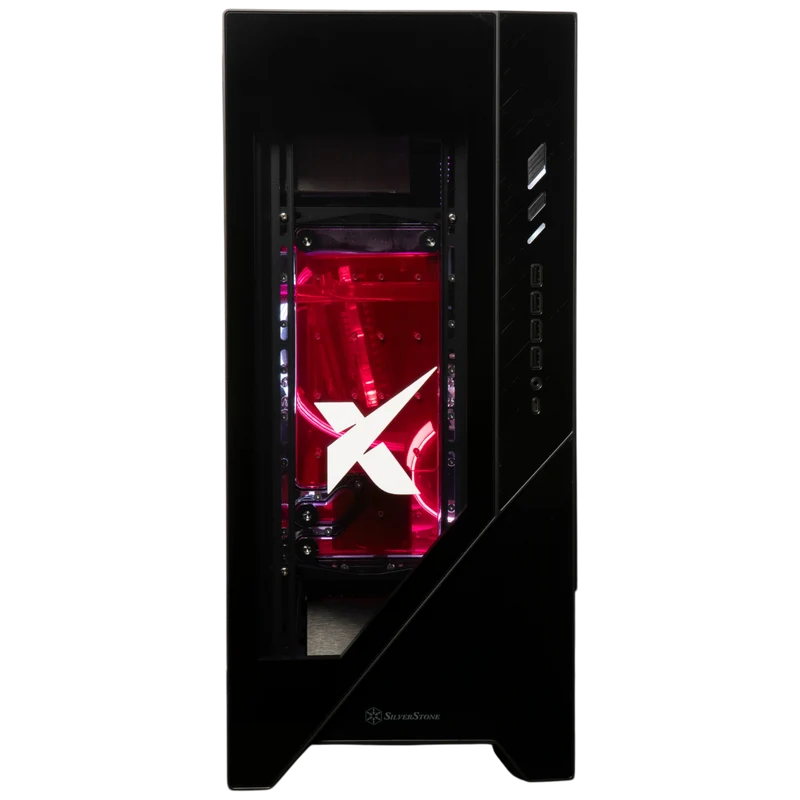

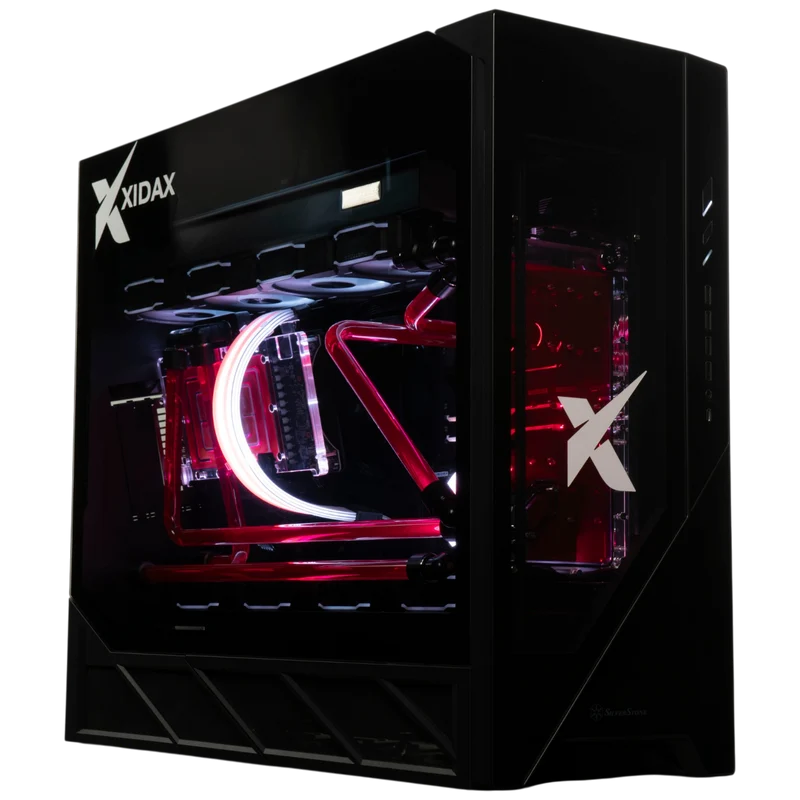

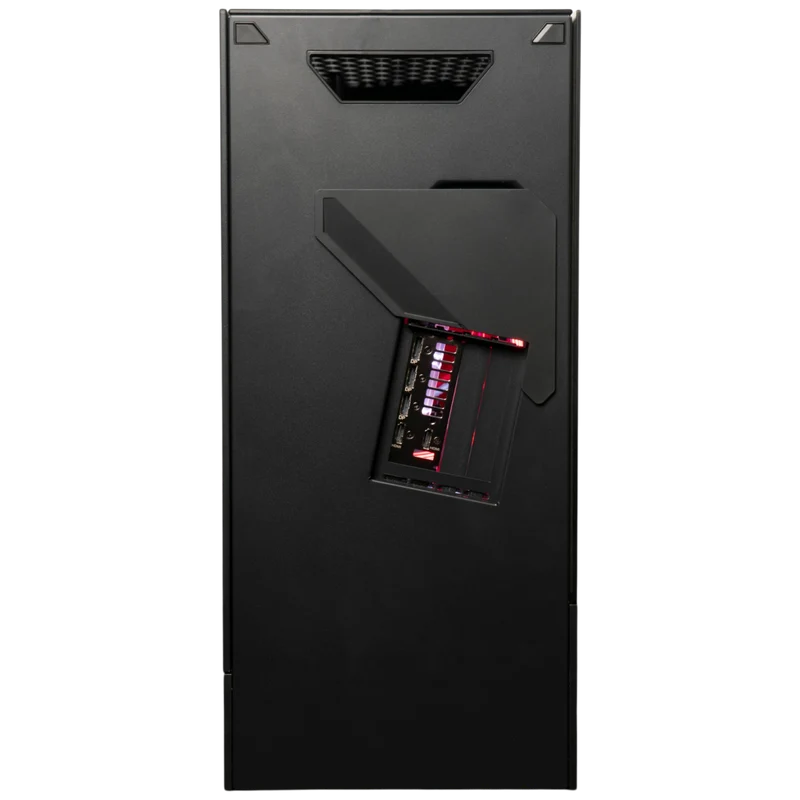

X-10 ALTA

Material Aluminum, plastic, steel, tempered glass Motherboard SSI-EEB, SSI-CEB, Extended ATX, XL-ATX , ATX, Micro-ATX, Mini-ITX Drive bay Internal

• 3.5" x 4 (compatible with 2.5" x 4)
  3.5" x 4
  2.5" x 3

Cooling system Front

• 120mm x 2 / 140mm x 2

Top

• 120mm x 4 / 140mm x 1

Bottom

• 180mm x 3 (180mm x 3 Air Penetrator 184i PRO fans included)

Radiator support Front

• 120mm / 140mm / 240mm / 280mm

Top

• 120mm / 140mm / 240mm / 360mm / 480mm

Bottom

• 120mm / 140mm / 240mm / 280mm / 360mm (120mm x 3) / 360mm (180mm x 2) / 420mm / 480mm / 540mm / 560mm

Limitation of CPU cooler 205mm Expansion slot 9+4+4 Limitation of expansion card Length (vertical): 354mm
Length (horizontal): 604mm (with front hard drive cages removed)
Width: 209mm Power supply Standard PS2 (ATX) + Standard PS2 (ATX) under 1200W (Occupies the rear 4+4 expansion slots) Limitation of PSU 220mm Front I/O port USB Type-C x 1
USB 3.0 x 4
Combo audio x 1 Dimension 261mm (W) x 576mm (H) x 658mm (D), 99 Liters
10.28” (W) x 22.68” (H) x 25.91” (D), 99 Liters Net weight 21.14 kg (case only
